- NEW
VCBL-S6-HD 128x60x75 TV
Part no.: 10.01.12.05503
Vacuum block for SCM/Morbidelli console - Type 6
| Dimension (LxW) | 128x60 |
| Height H | 75 (mm) |
| Additional function vacuum block | Touch valve |

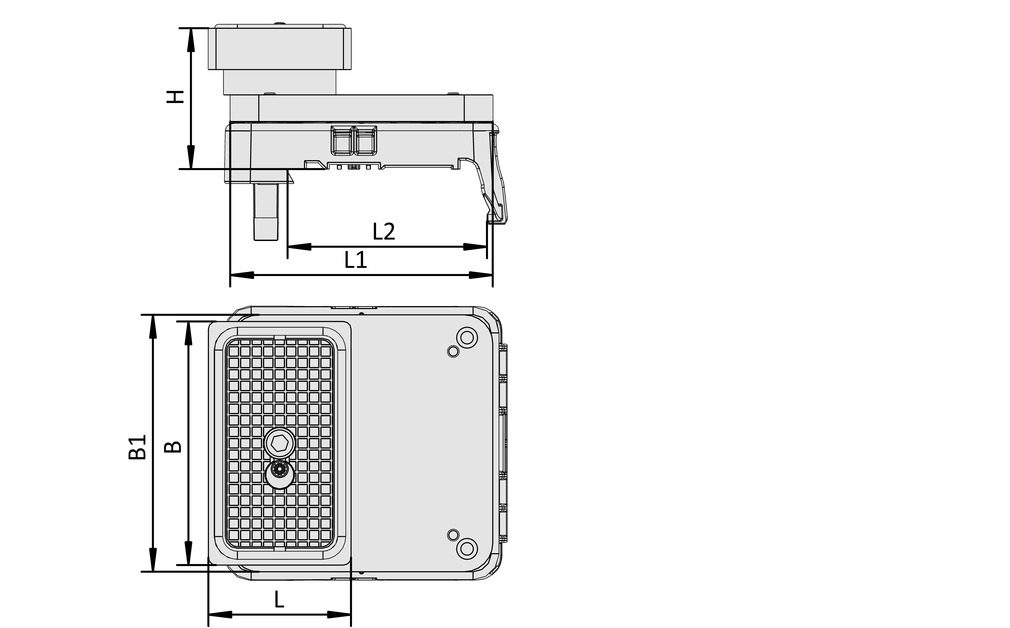

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 60 mm |
| B1 | 135 mm |
| H | 75 mm |
| L | 128 mm |
| L1 | 138 mm |
| L2 | 104 mm |
Documentation
Documentation
Spare parts
VCSP-O 128x60x19.5 RB AL10.01.12.05310Suction-Plate for vacuum block,
(top)
| Length L | 128 (mm) |
| Width B | 60 (mm) |
| Dimension (LxW) | mm |
| Height H | 19.5 (mm) |
| Material | Aluminum |
| Additional function vacuum block | Friction pad |
DI-PROF 4x6x318 MOS10.01.12.05307Sealing section for construction
of specific gripper solutions
| Length L | 318 (mm) |
| Width B | 4 (mm) |
| Dimension (LxW) | mm |
| Height H | 6 (mm) |
O-RING 50x2.5 NBR-7010.07.08.00073O-ring
| Dimension (LxW) | mm |
| Internal diameter d | 50 (mm) |
| Material | Nitrile rubber NBR |
TV D9 4.310.01.12.02514Touch valve for deactivation of
unused suction cups or
vacuum blocks
| Outside diameter D | 9 (mm) |
| Spring stroke Z | 4.3 (mm) |
| Length L | 22.8 (mm) |
DI-PROF 4x6x47610.01.12.05401Sealing section for construction
of specific gripper solutions
| Length L | 476 (mm) |
| Width B | 4 (mm) |
| Dimension (LxW) | mm |
| Height H | 6 (mm) |
Product recommendations
Vacuum Blocks VCBL-S6
- For SCM TV consoles of the series Flex, Flexmatic, Start or Pilot with 98 mm console width
- Integrated touch valve and NFC tag
- With mechanical pre-fixation
Mechanical Clamps VCMC-S6-QUICK
- Clamping system for SCM TV consoles
- For frames and window profiles
- With mechanical pre-fixation
