SCPSi-UHV-HD 11 G02 NC
Part no.: 10.02.02.06293
Compact ejector with special nozzle technology for increased vacuum level and IO-Link functionality
| Shape compact ejectors | HD |
| Nozzle diameter | 1.1 (mm) |
| Connection | G1/8"(1)-G1/8"(2) |
| Electrical connection | Male connect M12, 5 pol |
| Suction rate (max.) | 27.8 (l/min) |
| Air consumption suction | 37.5 (l/min) |
| Sound pressure level free | 68 (dB(A)) |
| Pressure range (operating pressure) [bar] | 3.0 ... 6.0 bar |
| Max. vacuum | -910 (mbar) |
| Control valve | Normally closed |
| Functionality of the ejector | Digital air-saving function |
| Protection type IP | IP 65 (with plug) |

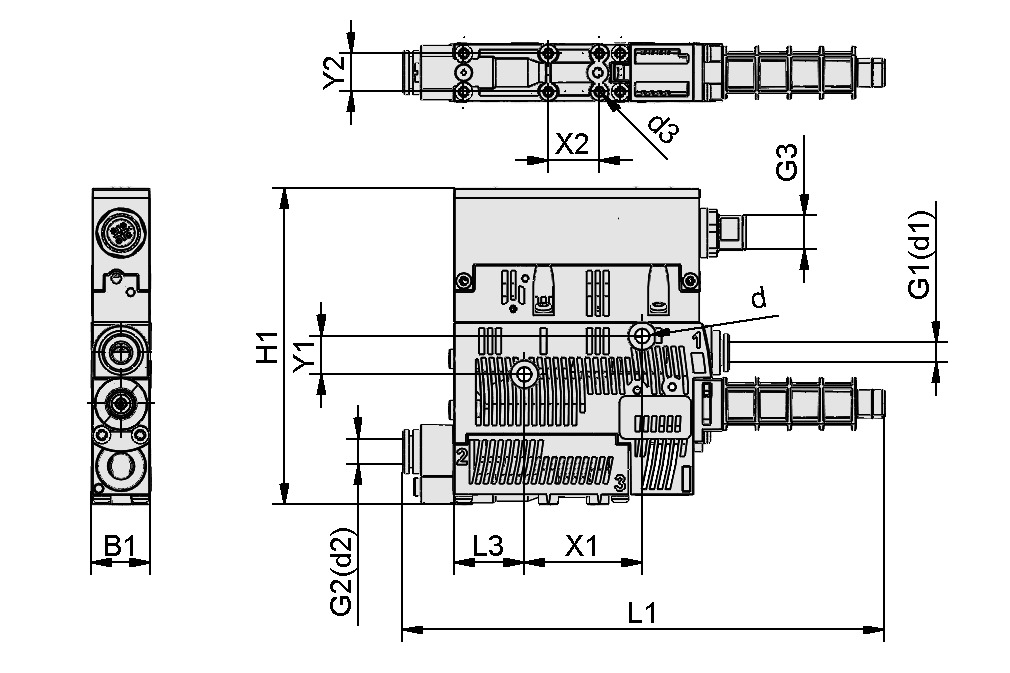

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 18 mm |
| B1 | 18,6 mm |
| D | 16,5 mm |
| d | 4,4 mm |
| D2 | 9 mm |
| d3 | 2,6 mm |
| G1 | G1/8"-F |
| G2 | G1/8"-F |
| G3 | M12x1-M |
| H | 99 mm |
| H2 | 40,8 mm |
| H3 | 47,5 mm |
| H4 | 16,5 mm |
| H5 | 5,5 mm |
| H6 | 31,5 mm |
| L | 135 mm |
| L1 | 150 mm |
| L2 | 91,5 mm |
| L3 | 22 mm |
| L4 | 31 mm |
| L5 | 83,8 mm |
| X1 | 36,9 mm |
| X2 | 16 mm |
| Y1 | 12 mm |
| Y2 | 12 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Nozzle size | 11 |
| Degree of evacuation | 91 % |
| Suction rate (max.) | 27,8 l/min |
| Suction rate (max.) | 1,6 m³/h |
| Air consumption suction | 37,5 l/min |
| Air consumption suction | 2,2 m³/h |
| Air consumption blow-off | 7,2 m³/h |
| Sound pressure level free | 68 dB(A) |
| Sound pressure level suction | 75 dB(A) |
| Pressure range (operating pressure) [bar] | 3.0 ... 6.0 bar |
| Connection | G02 |
| Control valve | Normally closed |
| Electrical connection | M12-5 |
| Weight | 0,21 kg |
| Max. air consumption blow-off | 120 l/min |
| Operating temperature | 0 ... 50 °C |
| Pressure range (operating pressure) [bar] | 43.5 ... 87.0 |
| Air consumption blow-off | 4,24 cfm |
| Air consumption suction | 1,32 cfm |
| Suction rate (max.) | 0,98 cfm |
| Max. vacuum | −26,87 inHg |
| Product family | SCPSi-UHV-HD |
Performance Data
Performance Data
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
E-Plan Macro
E-Plan Macro
Documentation
Documentation
Software
Software
The matching software for this product is available in this section.
| Documentation | Language |
|---|---|
| English | |
| English |
Spare parts
SD 16.5x51 SCPS10.02.02.05094Silencer for vacuum generators
| Outside diameter D | 16.5 (mm) |
| Length L | 51 (mm) |
| Utilization design | Compact ejectors SCPS / SCPSi |
VACU-SET 11 12.80x76.60 SCPS10.02.02.06279Vacuum unit with ejector
fully assembled
| Outside diameter D | 12.8 (mm) |
| Length L | 76.6 (mm) |
| Utilization design | Compact ejectors SCPS / SCPSi |
WART SCPS/SCPSi-HD10.02.02.06343Maintenance set ejector
| Utilization design | Compact ejectors SCPS / SCPSi |
| Size | HD |
Accessories
ASK B-M12-5 5000 K-5P21.04.05.00080Connection cable
| Electrical connection | Fem connect M12, 5 pol |
| Cable length | 5000 (mm) |
| Connection 2 | Cable, 5-pole |
| Material hose | PUR cable |
ASK B-M12-5 1000 S-M12-521.04.05.00158Connection cable
| Pressure range (operating pressure) [bar] | bar |
| Electrical connection | Fem connect M12, 5 pol |
| Cable length | 1000 (mm) |
| Connection 2 | Plug M12, 5-pole |
| Material hose | PUR cable |
ASK B-M12-5 2000 S-M12-521.04.05.00211Connection cable
| Pressure range (operating pressure) [bar] | bar |
| Electrical connection | Fem connect M12, 5 pol |
| Cable length | 2000 (mm) |
| Connection 2 | Plug M12, 5-pole |
| Material hose | PUR cable |
ASV SM/CPi B-M12-5 2xS-M12-410.02.02.03490Connection distributor
| Pressure range (operating pressure) [bar] | bar |
| Length L | 1050 (mm) |
HUT-SN-KL 75x18x9 SCPS10.02.02.04149Top-hat rail clamp comp.
| Length L | 75 (mm) |
| Width B | 18 (mm) |
| Height H | 9 (mm) |
| Utilization design | Compact ejectors SCPS / SCPSi |
| Profil type | EN 50022 |
VFI CN6/4 5010.07.01.00241Vacuum filter with replaceable
filter cartridge
| Connection | Hose 6/4 with Cap nut |
| Filter pore size | 50 (µm) |
VFI 6/4 5010.07.01.00328Vacuum filter with replaceable
filter cartridge
| Connection | Hose 6/4 |
| Filter pore size | 50 (µm) |
