SFF 10 NBR-ESD-55 M5-AG
Číslo dílu.: 10.01.01.14671
Flat suction cup (round) for dynamic handling of thin and flexible workpieces
| Size | 10 |
| Suction cup material | Nitrile rubber NBR-ESD |
| Material hardness [Shore A] | 55 (Shore A) |
| Product family | SFF |
Flexible, thin sealing lip with stabilizing support surface to protect CCLs
Very good vacuum distribution due to the structure for safe component handling
Suction cups for a wide range of requirements (food safe, chemically resistant, temperature resistant, dissipative)
Protection against uncontrolled electrostatic discharge by NBR-ESD
Sensitive Electronics Perfectly Handled – Minimized Marks, Maximized ESD Protection
In electronics manufacturing, there is no second chance. One tiny mark, one static discharge and entire batches are ruined. Not with us!
Our innovative suction cups made the material of HT1-ESD solve these challenges and many more: They protect workpieces from unwanted marks and ESD damage. With our suction cups, you benefit from:
- Clean surfaces
- Maximum component safety
- Reliability at high temperatures
- High system availability and cost efficiency
Thanks to our extensive expertise in material development, the suction cup material HT1-ESD stands for cutting-edge technology and sets new standards in electronics manufacturing.
Nadstavba
Nadstavba

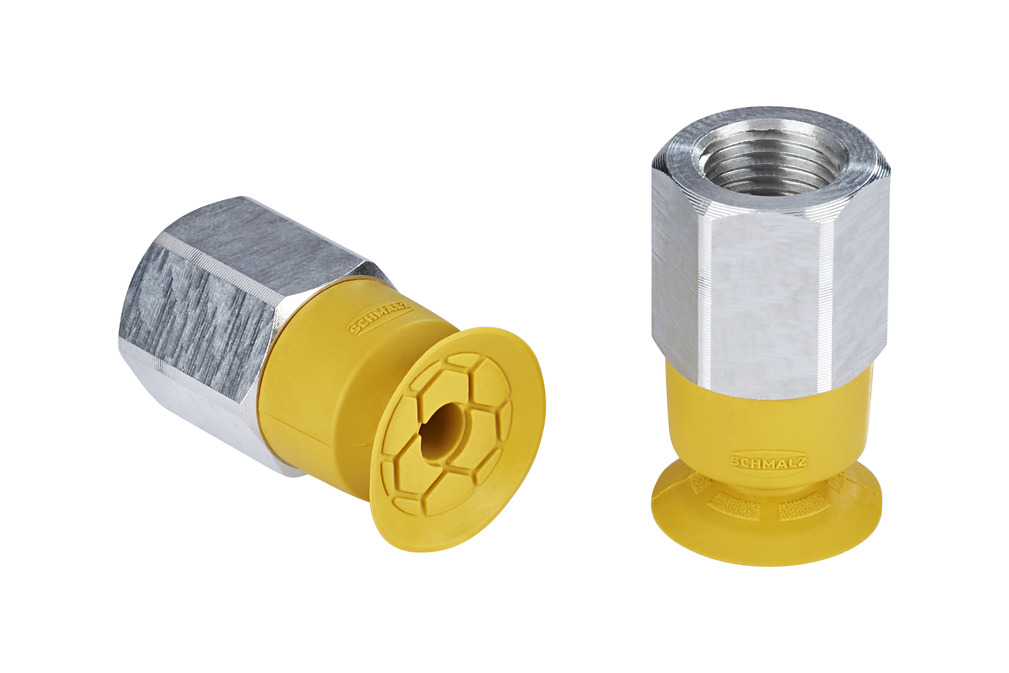

- Suction cup with thin and flexible sealing lip consisting of flat suction cup SFF (1) or bellows suction cup SFB1 with 1.5 folds (2) and Schmalz connection element SC (3)
- Inner support surface with honeycomb structure and very good vacuum distribution
- Suction area (Ø) from 10 mm to 60 mm
Technické údaje
Technické údaje
- Suction area (Ø) from 10 mm to 60 mm
- Material: HT1, NBR-ESD
- Dissipative and non-marking variants
1 - 10 z 50 výsledků
SFB1 10 NBR-ESD-55 M5-AG
Číslo dílu.: 10.01.06.04788
Bellows suction cup (round) for gentle handling of thin and flexible workpieces
| Size | 10 |
| Suction cup material | Nitrile rubber NBR-ESD |
| Material hardness [Shore A] | 55 (Shore A) |
| Product family | SFB1 |
SFF 10 HT1-60 M5-AG
Číslo dílu.: 10.01.01.14272
Flat suction cup (round) for dynamic handling of thin and flexible workpieces
| Size | 10 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Product family | SFF |
SFB1 10 HT1-60 M5-AG
Číslo dílu.: 10.01.06.04393
Bellows suction cup (round) for gentle handling of thin and flexible workpieces
| Size | 10 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Product family | SFB1 |
SFF 15 HT1-60 M5-AG
Číslo dílu.: 10.01.01.14273
Flat suction cup (round) for dynamic handling of thin and flexible workpieces
| Size | 15 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Product family | SFF |
SFB1 15 HT1-60 M5-AG
Číslo dílu.: 10.01.06.04396
Bellows suction cup (round) for gentle handling of thin and flexible workpieces
| Size | 15 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Product family | SFB1 |
SFF 15 NBR-ESD-55 M5-AG
Číslo dílu.: 10.01.01.14536
Flat suction cup (round) for dynamic handling of thin and flexible workpieces
| Size | 15 |
| Suction cup material | Nitrile rubber NBR-ESD |
| Material hardness [Shore A] | 55 (Shore A) |
| Product family | SFF |
SFB1 15 NBR-ESD-55 M5-AG
Číslo dílu.: 10.01.06.04789
Bellows suction cup (round) for gentle handling of thin and flexible workpieces
| Size | 15 |
| Suction cup material | Nitrile rubber NBR-ESD |
| Material hardness [Shore A] | 55 (Shore A) |
| Product family | SFB1 |
SFF 15 NBR-ESD-55 G1/8-AG
Číslo dílu.: 10.01.01.14537
Flat suction cup (round) for dynamic handling of thin and flexible workpieces
| Size | 15 |
| Suction cup material | Nitrile rubber NBR-ESD |
| Material hardness [Shore A] | 55 (Shore A) |
| Product family | SFF |
SFF 15 HT1-60 G1/8-AG
Číslo dílu.: 10.01.01.14274
Flat suction cup (round) for dynamic handling of thin and flexible workpieces
| Size | 15 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Product family | SFF |
