Schmalz

Przyssawki SFF / SFB1

Powierzchnia ssąca (Ø) od 10 mm do 30 mm
Przejdź bezpośrednio do produktów

Elastyczna, cienka warga uszczelniająca z stabilizującą powierzchnią nośną do ochrony CCL

Bardzo dobry rozkład podciśnienia dzięki strukturze zapewniającej bezpieczne przenoszenie komponentów

Przyssawki dla szerokiego zakresu wymagań (bezpieczne dla żywności, odporne chemicznie, odporne na temperaturę, rozpraszające)

Ochrona przed niekontrolowanym wyładowaniem elektrostatycznym za pomocą NBR-ESD

Projekt

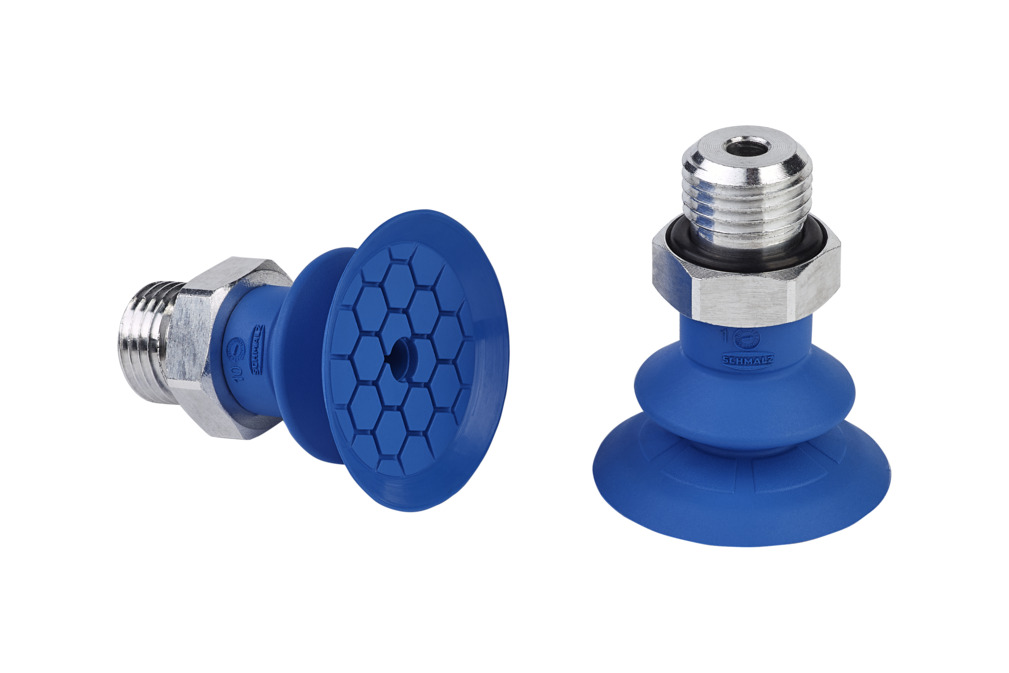

  • Przyssawka z cienką i elastyczną wargą uszczelniającą składającą się z płaskiej przyssawki SFF (1) lub mieszkowej SFB1 z 1,5 fałdą (2) i elementem łączącym Schmalz SC (3)
  • Wewnętrzna powierzchnia nośna o strukturze plastra miodu i bardzo dobrym rozłożeniu podciśnienia
  • Powierzchnia ssąca (Ø) od 10 mm do 30 mm
Dane techniczne
  • Powierzchnia ssąca (Ø) od 10 mm do 30 mm
  • Materiał: SI, EPDM, HT1, NBR-ESD
  • Warianty dyspersyjne i niskociśnieniowe

Filtruj wyniki

Product family
Number of folds
Size
Suction cup material
Height H
Spring stroke Z
Etykietowanie
Industry sector

1 - 10 z 50 wyników

SFB1 40 NBR-ESD-55 G1/4-AG

Część nr.: 10.01.06.04798

Bellows suction cup (round) for very uneven workpieces flexible workpieces

Size40
Suction cup materialNitrile rubber NBR-ESD
Material hardness [Shore A]55 (Shore A)
SFF 40 HT1-60 G1/4-IG

Część nr.: 10.01.01.14283

Flat suction cup (round) for dynamic handling of thin and flexible workpieces

Size40
Suction cup materialHigh temperature material HT1
Material hardness [Shore A]60 (Shore A)
SFF 10 HT1-60 M5-AG

Część nr.: 10.01.01.14272

Flat suction cup (round) for dynamic handling of thin and flexible workpieces

Size10
Suction cup materialHigh temperature material HT1
Material hardness [Shore A]60 (Shore A)
SFB1 10 HT1-60 M5-AG

Część nr.: 10.01.06.04393

Bellows suction cup (round) for very uneven workpieces flexible workpieces

Size10
Suction cup materialHigh temperature material HT1
Material hardness [Shore A]60 (Shore A)
SFF 30 NBR-ESD-55 G1/4-IG

Część nr.: 10.01.01.14677

Flat suction cup (round) for dynamic handling of thin and flexible workpieces

Size30
Suction cup materialNitrile rubber NBR-ESD
Material hardness [Shore A]55 (Shore A)
SFB1 25 NBR-ESD-55 G1/8-AG

Część nr.: 10.01.06.04794

Bellows suction cup (round) for very uneven workpieces flexible workpieces

Size25
Suction cup materialNitrile rubber NBR-ESD
Material hardness [Shore A]55 (Shore A)
SFB1 20 NBR-ESD-55 G1/8-IG

Część nr.: 10.01.06.04793

Bellows suction cup (round) for very uneven workpieces flexible workpieces

Size20
Suction cup materialNitrile rubber NBR-ESD
Material hardness [Shore A]55 (Shore A)
SFF 20 NBR-ESD-55 G1/8-IG

Część nr.: 10.01.01.14673

Flat suction cup (round) for dynamic handling of thin and flexible workpieces

Size20
Suction cup materialNitrile rubber NBR-ESD
Material hardness [Shore A]55 (Shore A)
SFB1 20 NBR-ESD-55 G1/8-AG

Część nr.: 10.01.06.04792

Bellows suction cup (round) for very uneven workpieces flexible workpieces

Size20
Suction cup materialNitrile rubber NBR-ESD
Material hardness [Shore A]55 (Shore A)
SFF 15 NBR-ESD-55 G1/8-AG

Część nr.: 10.01.01.14537

Flat suction cup (round) for dynamic handling of thin and flexible workpieces

Size15
Suction cup materialNitrile rubber NBR-ESD
Material hardness [Shore A]55 (Shore A)
