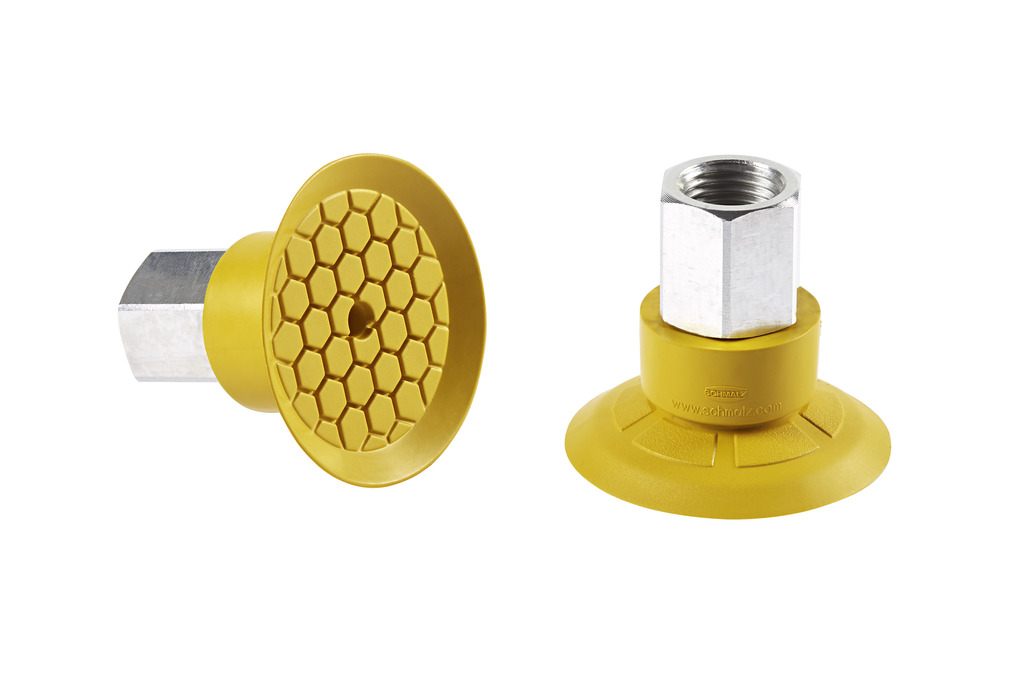

SFF 40 NBR-ESD-55 G1/4-IG
Part no.: 10.01.01.14679
Flat suction cup (round) for dynamic handling of thin and flexible workpieces
| Size | 40 |
| Suction cup material | Nitrile rubber NBR-ESD |
| Material hardness [Shore A] | 55 (Shore A) |
| Product family | SFF |
Flexible, thin sealing lip with stabilizing support surface to protect CCLs
Very good vacuum distribution due to the structure for safe component handling
Suction cups for a wide range of requirements (food safe, chemically resistant, temperature resistant, dissipative)
Protection against uncontrolled electrostatic discharge by NBR-ESD
Design
Design
- Suction cup with thin and flexible sealing lip consisting of flat suction cup SFF (1) or bellows suction cup SFB1 with 1.5 folds (2) and Schmalz connection element SC (3)
- Inner support surface with honeycomb structure and very good vacuum distribution
- Suction area (Ø) from 10 mm to 60 mm
Technical Data
Technical Data
- Suction area (Ø) from 10 mm to 60 mm
- Material: HT1, NBR-ESD
- Dissipative and non-marking variants
1 - 10 from 50 results

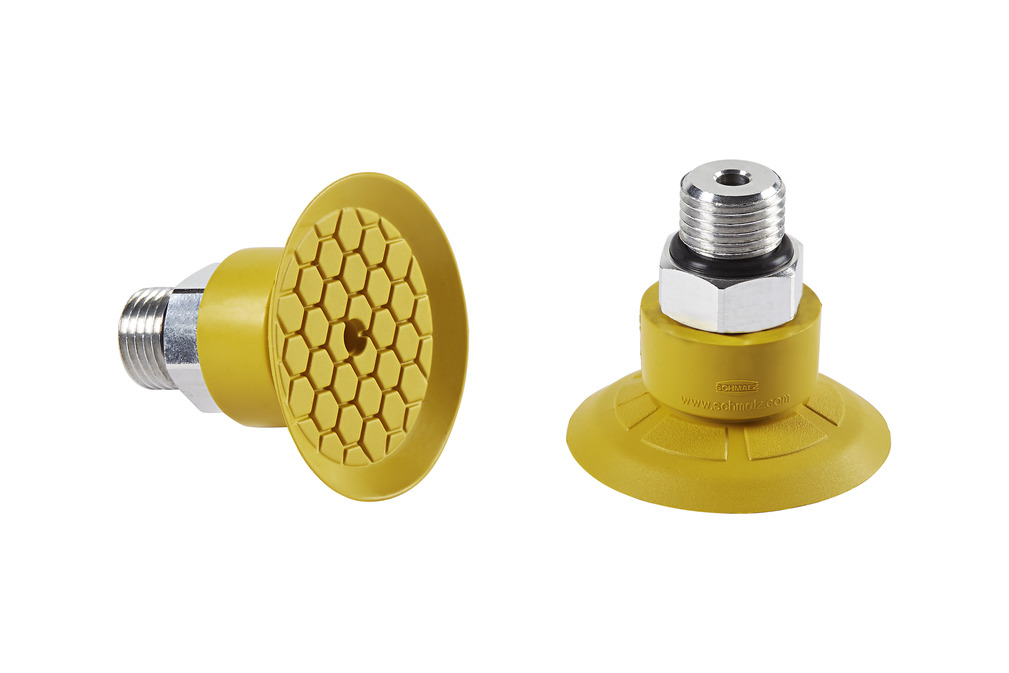

SFF 40 NBR-ESD-55 G1/4-AG
Part no.: 10.01.01.14678
Flat suction cup (round) for dynamic handling of thin and flexible workpieces
| Size | 40 |
| Suction cup material | Nitrile rubber NBR-ESD |
| Material hardness [Shore A] | 55 (Shore A) |
| Product family | SFF |
SFB1 40 HT1-60 G1/4-IG
Part no.: 10.01.06.04426
Bellows suction cup (round) for gentle handling of thin and flexible workpieces
| Size | 40 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Product family | SFB1 |
SFF 40 HT1-60 G1/4-IG
Part no.: 10.01.01.14283
Flat suction cup (round) for dynamic handling of thin and flexible workpieces
| Size | 40 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Product family | SFF |
SFB1 40 HT1-60 G1/4-AG
Part no.: 10.01.06.04423
Bellows suction cup (round) for gentle handling of thin and flexible workpieces
| Size | 40 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Product family | SFB1 |
SFB1 10 NBR-ESD-55 M5-AG
Part no.: 10.01.06.04788
Bellows suction cup (round) for gentle handling of thin and flexible workpieces
| Size | 10 |
| Suction cup material | Nitrile rubber NBR-ESD |
| Material hardness [Shore A] | 55 (Shore A) |
| Product family | SFB1 |

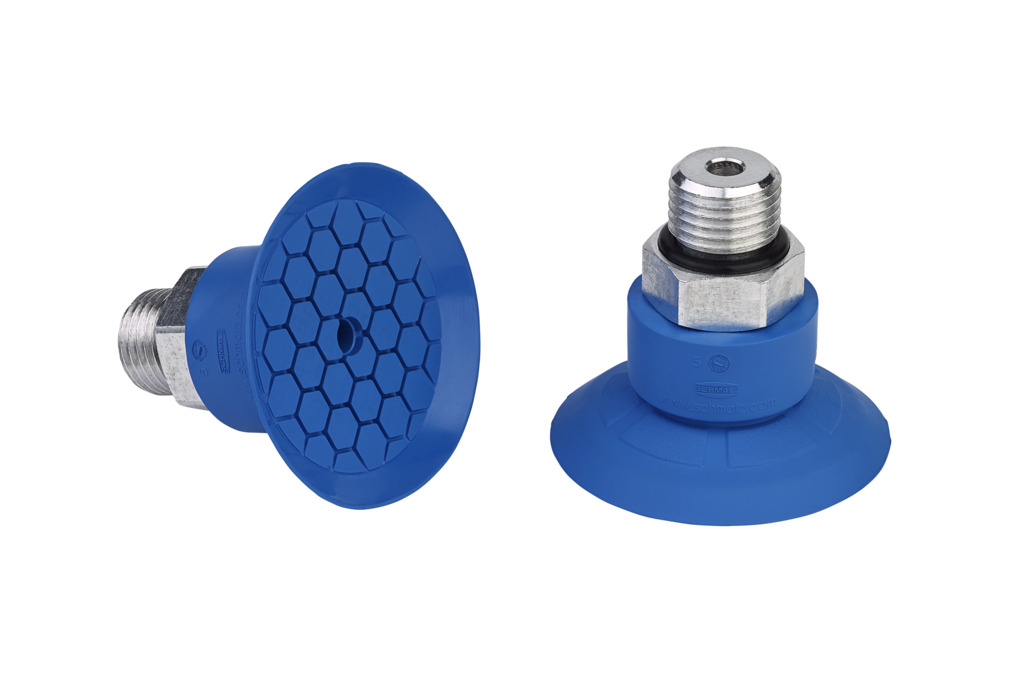

SFF 40 HT1-60 G1/4-AG
Part no.: 10.01.01.14282
Flat suction cup (round) for dynamic handling of thin and flexible workpieces
| Size | 40 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Product family | SFF |
SFF 30 NBR-ESD-55 G1/4-IG
Part no.: 10.01.01.14677
Flat suction cup (round) for dynamic handling of thin and flexible workpieces
| Size | 30 |
| Suction cup material | Nitrile rubber NBR-ESD |
| Material hardness [Shore A] | 55 (Shore A) |
| Product family | SFF |
SFF 30 NBR-ESD-55 G1/4-AG
Part no.: 10.01.01.14676
Flat suction cup (round) for dynamic handling of thin and flexible workpieces
| Size | 30 |
| Suction cup material | Nitrile rubber NBR-ESD |
| Material hardness [Shore A] | 55 (Shore A) |
| Product family | SFF |
SFB1 30 HT1-60 G1/4-IG
Part no.: 10.01.06.04420
Bellows suction cup (round) for gentle handling of thin and flexible workpieces
| Size | 30 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Product family | SFB1 |
