Flat Suction Cups SUF
- Diameter: 1 to 100 mm
- Material: NBR, NBR-ESD, SI, SI-CO, HT1, HT1-ESD, EPDM-ECO
Show category
Automated cleanroom solutions
Automated cleanroom solutions
Proven cleanroom quality: details on our cleanroom solutions
All materials used are abrasion-resistant and reduce particle emissions to a minimum. This reliably prevents contamination of sensitive products - a prerequisite for complying with strict hygiene regulations and ensuring the highest product quality. To prove this quality, our Vacuum Automation solutions are independently tested by Fraunhofer IPA. Cleanroom suitability is confirmed with the recognized TESTED DEVICE® or CSM® certification marks.

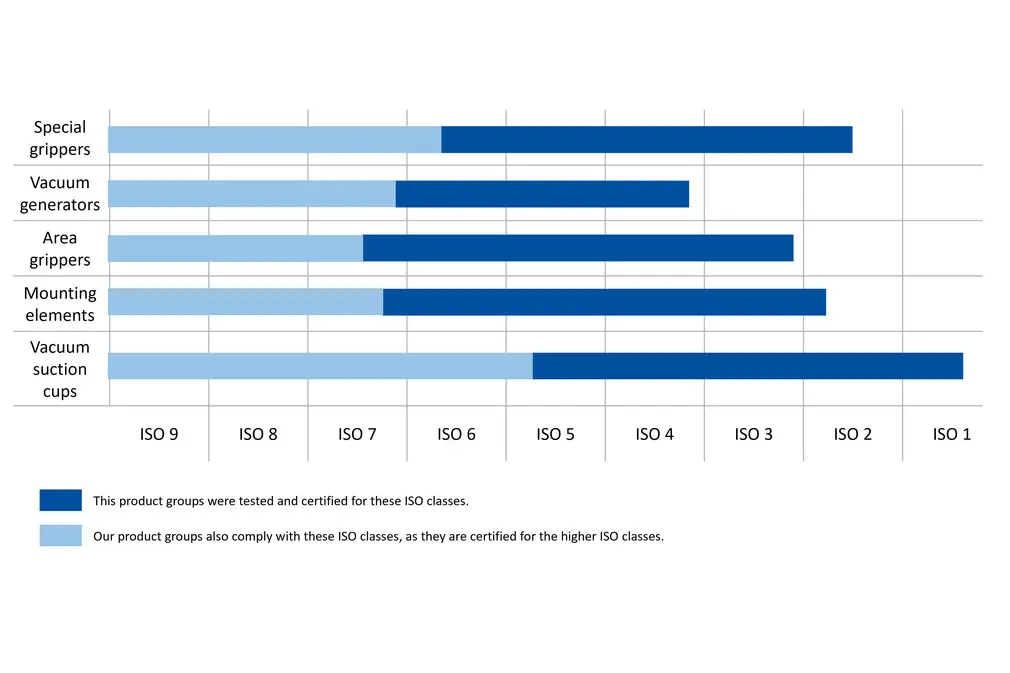

For better orientation, the following graphic shows the classification of our product portfolio based on the ISO classes and illustrates which solutions are suitable for your specific cleanroom requirements:
Vacuum suction cups
Bellows Suction Cups FSGA (1.5 Folds)
- Diameter: 2 to 78 mm
- Material: HT1, HT1-ESD, NBR, NBR-ESD, NK, SI, SI-CO, SI-MD, SI-HD, EPDM-ECO
- Connection nipple plugged into elastomer part
Show category
Suction Cups SFF / SFB1
- Suction area (Ø) from 10 mm to 60 mm
- Material: SI, EPDM, HT1, HT1-ESD, NBR-ESD
Show category
Special grippers
Floating Suction Cups SBS
- Diameter: 10 to 120 mm
- Holding force: 1.4 to 104.0 N
- Rubber buffer on the bottom side of the suction cup
Show category
Wafer Grippers SWGm
- Dimensions: 115 x 115 mm and 146 x 146 mm
- Selectable base model with axial exhaust air or sideways exhaust air
- Material suction surface: PEEK
Show category
Thin Glass Grippers STGG
- Suction area: 100 x 55 mm and 170 x 105 mm
- Material suction area: PEEK
- Suction rate: 31 to 235 l/min
Show category
Mounting elements
Spring Plungers FSTIm
- Modular suction cup connection
- Stroke: 5 to 20 mm
- Internal damping spring
- With and without anti-rotation guard
Show category
Vacuum generators
Mini Compact Valves SCPM EV
- Nominal flow: 2 m³/h (33 l/min)
- Main body made of plastic
Show category
Compact Ejectors SCPSc / SCPSi
- Suction rate up to 71 l/min
- Max. vacuum: 85 %
- Main body made of plastics
Show category
First-hand cleanroom expertise: we test and consult
Do you have questions about our cleanroom-certified products, would you like to have a product from our vacuum automation portfolio tested for cleanroom suitability or would you like an individual consultation? Simply leave your contact details – our experts will be happy to get in touch with you and provide you with individual consultation.
