| Version | Pump |
| Material properties | air-tight |
| Length L | 309 (mm) |
| Width B | 173 (mm) |

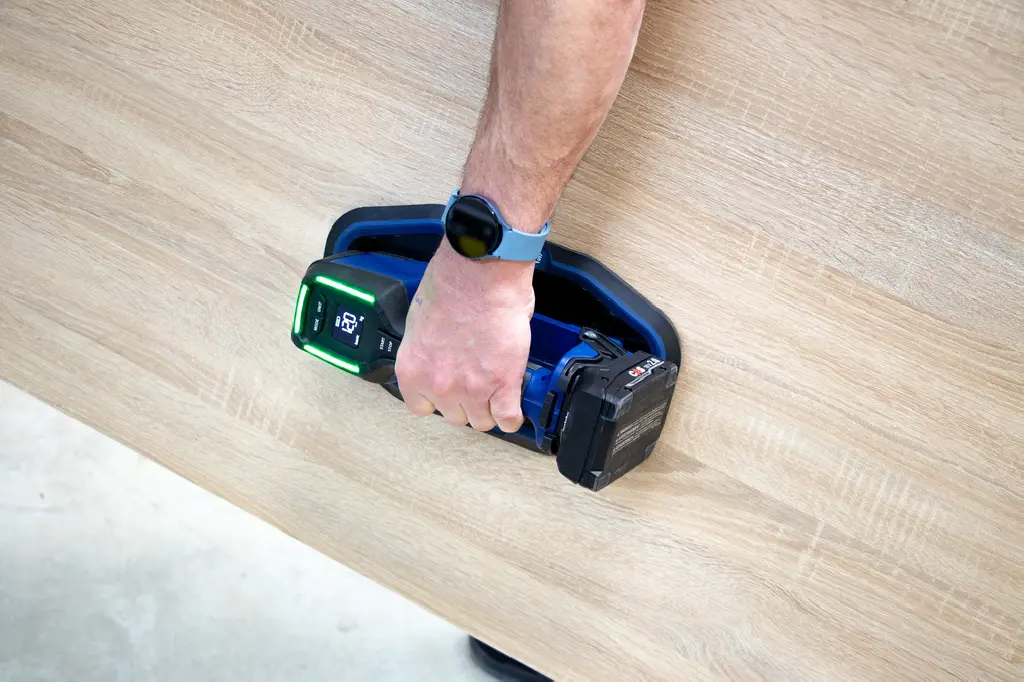

Suction Lifters Gripster max
For maximum holding force and efficient handling of airtight materials.
Quick readiness for use
With four times faster suction than comparable devices, the suction lifter is ready for immediate use
Simple & efficient handling
The intuitive one-button control ensures convenient operation and quick placement of workpieces
High flexibility in use
The quick-change system offers the right solution for every application thanks to tool-free changing of suction plates and equipment
One battery for many cases
The battery-operated suction lifter enables cordless and flexible handling. As part of the CAS alliance, high-quality, standardized and cross-product work is ensured
Centrally controlled, simply scaled
The central control system ensures efficient and easy coupling of multiple devices
Disclaimer
The Suction Lifter Gripster max (including its accessory and replacement parts) is not offered, marketed, or available for sale outside Europe, especially not in the United States or China. The information on this website (and in any related advertising materials or documentation) is provided for general informational purposes only and does not constitute an offer to sell, or a solicitation of an offer to buy, the Suction Lifter Gripster max (including its accessory and replacement parts) outside Europe, especially not in the United States or China. The Suction Lifter Gripster max (including its accessory and replacement parts) may not be used in the United States or China.
Design
Design
- Main body with rubberized, non-slip grip (1)
- Interchangeable suction plate (2) with quick-change system (3)
- Visual status indicator (4) with display and LED ring
- Start / stop button (5) and button for menu navigation (6)
- Battery (7) and battery release (8)
- Connection socket (9) for central control when coupling several devices or wired remote control
Technical Data
Technical Data
| Type | Evacuation time min. [sec] | max Suction sound level [dB(A)] | max. Vacuum [mbar, rel] | max. Suction rate [sl/min] | Weight [kg] | max. Lift capacity [kg] |
|---|---|---|---|---|---|---|
| Gripster max | 2 | 60 | 750 | 15 | 1.7 | 120 | 60 |
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
Videos
Discover application examples of the product in various industries - user-friendly, informative and practical.
No suitable videos found? Then take a look at our media center.
Watch video now
Suction Lifter Gripster max – Get a Grip
Watch video now
How To...? Integrating Equipment on the Suction Lifter Gripster max
Watch video now
How To...? Changing the Filter on the Suction Lifter Gripster max
Watch video now
How To...? Changing the Battery of the Suction Lifter Gripster max
Watch video now
How To...? Commissioning and Functions of the Suction Lifter Gripster max
1 - 1 from 1 results
Coming soon and already available for pre-order now
The suction lifter Gripster max will be available from summer 2026. Pre-order your suction lifter Gripster max now.
Accessories

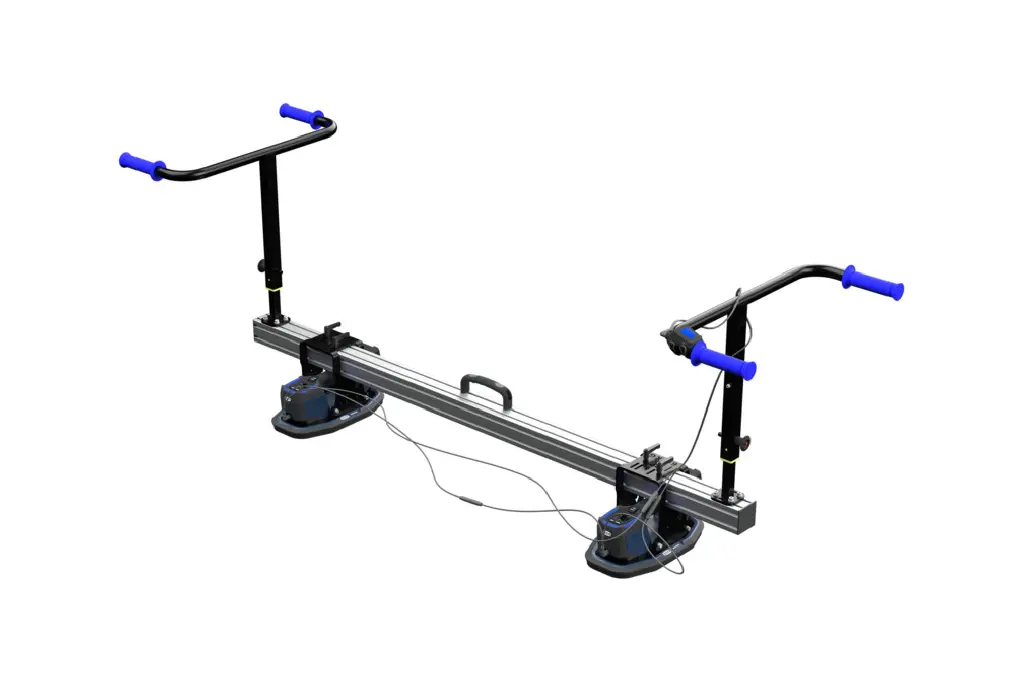

Carrying Aid
- For handling large-format sheets and workpieces, such as tiles or windows
- For horizontal use by one or two people
- Customizable

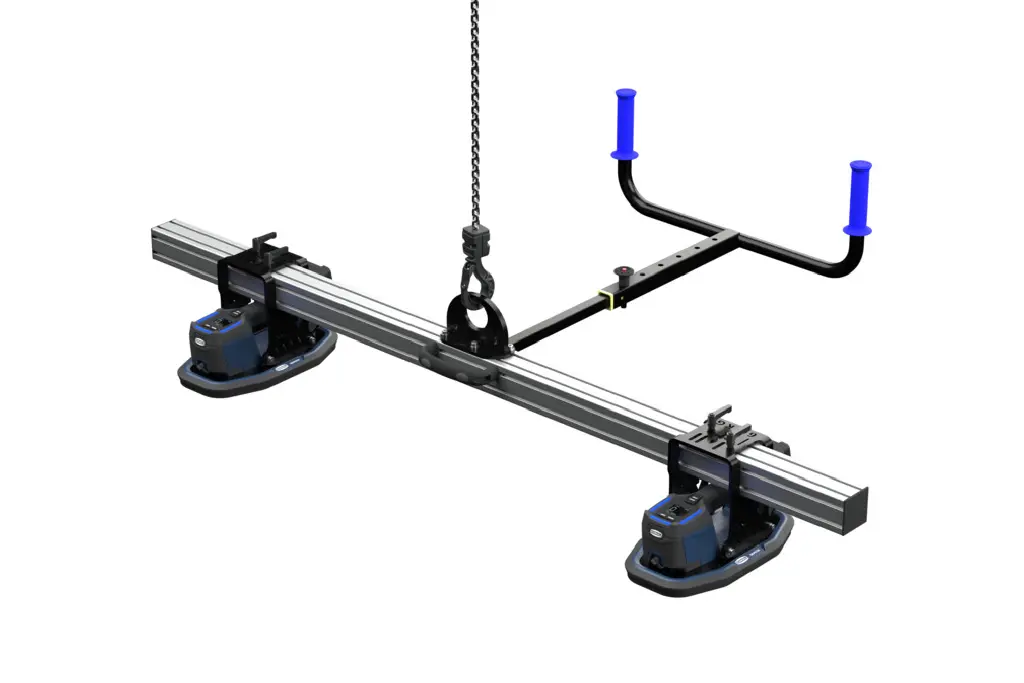

Chain Hoist Connection
- For handling large-format sheets and workpieces, such as tiles or windows
- For horizontal or vertical operation in connection with a chain hoist
- Customizable
NEO 30 Adapter
- For connecting two Gripster max suction lifters to a NEO 30 smart hoist from Binar Handling
- Battery-powered complete system
- Residual load capacity of approx. 25 kg on the NEO 30
Control Handle
- Easy connection to the Gripster max suction lifter
- For vertical, one-handed handling
- For a safe grip on the Gripster max suction lifter with a supporting guiding hand
Schmalz Adapter Plate
- Easy connection to the Gripster max suction lifter
- For the connection of various Schmalz accessories to the Gripster max suction lifter
- 100 mm hole spacing, M5 thread for easy connection
Universal Adapter
- Easy connection to the Gripster max suction lifter
- For connecting various accessories
- 176 mm hole spacing
Railing
- Easy attachment to the Gripster max suction lifter
- For safe, two-handed gripping and operation of the Gripster max suction lifter from all sides
