| Dimension (LxW) | 60 x 30 |
| Suction cup material | High temperature material HT2 |
| Material hardness [Shore A] | 65 (Shore A) |
| Nipple material | Nickel plated |
| Connection | G3/8-IG |

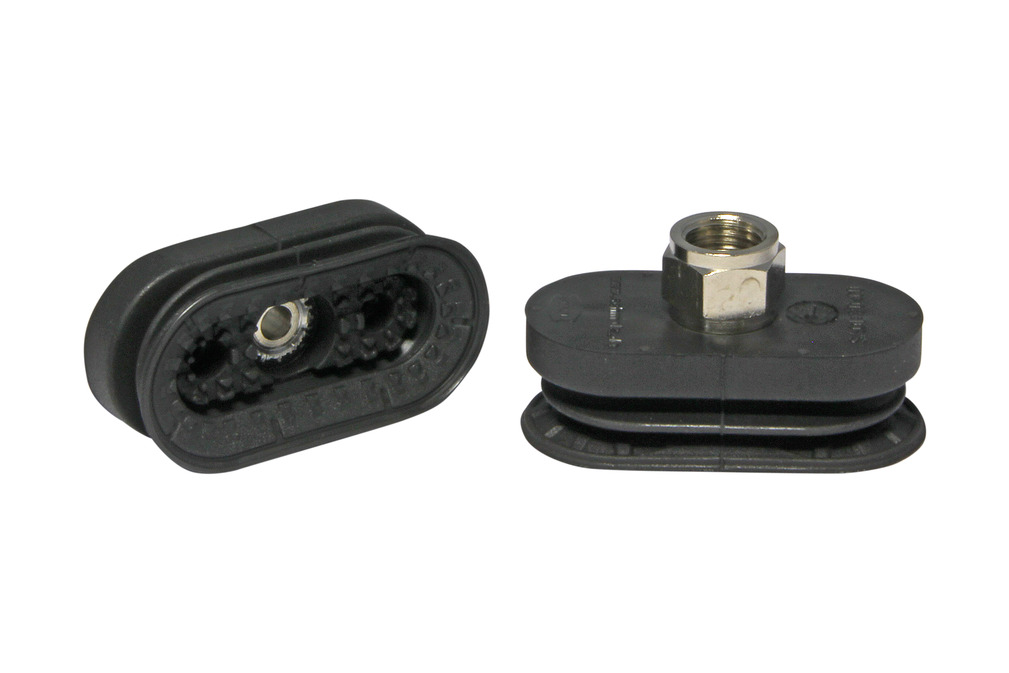

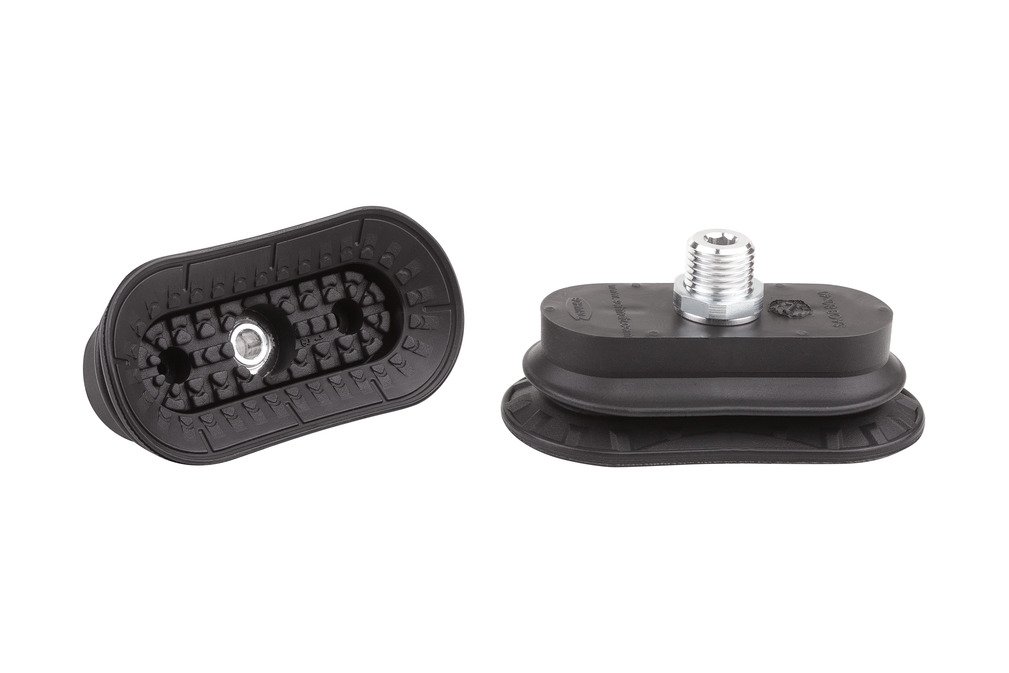

Bellows Suction Cups SAOB HT2 (Oval, 1.5 Folds)
Silicone-free special material HT2 is free of LABS and temperature resistant up to 250 °C
Large, structured inner support prevents deep drawing and withstands the highest lateral forces
Soft, flexible sealing lip seals optimally, even on slight unevenness
1.5 folds adapt optimally to curved workpieces and offer very good damping
Design
Design
- Robust and wear-resistant oval bellows suction cup SAOB made of HT2 with 1.5 folds, single sealing lip and inner support
- Connection nipple glued to the reinforcing element of the suction cup (very high strength and temperature resistance)
Technical Data
Technical Data
- Dimensions: 60 x 30 and 80 x 40 mm
- Material: HT2
- Connection nipple glued
1 - 6 from 6 results
| Dimension (LxW) | 60 x 30 |
| Suction cup material | High temperature material HT2 |
| Material hardness [Shore A] | 65 (Shore A) |
| Nipple material | Nickel plated |
| Connection | G1/4-IG |
| Dimension (LxW) | 60 x 30 |
| Suction cup material | High temperature material HT2 |
| Material hardness [Shore A] | 65 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/4-AG |
| Dimension (LxW) | 80 x 40 |
| Suction cup material | High temperature material HT2 |
| Material hardness [Shore A] | 65 (Shore A) |
| Nipple material | Nickel plated |
| Connection | G3/8-IG |
| Dimension (LxW) | 80 x 40 |
| Suction cup material | High temperature material HT2 |
| Material hardness [Shore A] | 65 (Shore A) |
| Nipple material | Nickel plated |
| Connection | G1/4-IG |
| Dimension (LxW) | 80 x 40 |
| Suction cup material | High temperature material HT2 |
| Material hardness [Shore A] | 65 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/4-AG |
