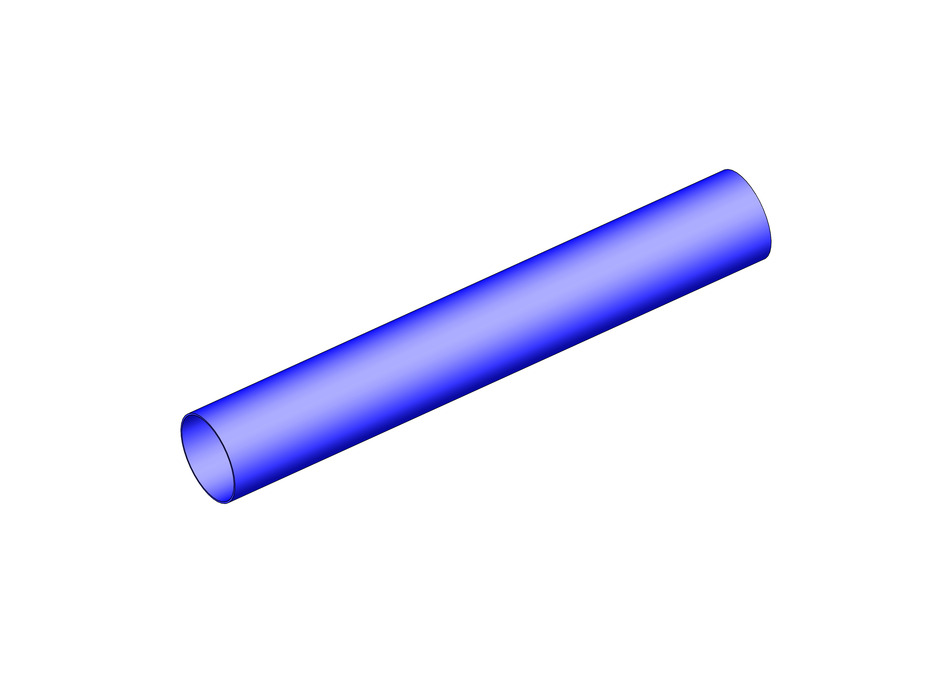

| Outside diameter D | 41 (mm) |
| Internal diameter d | 35 (mm) |
| Length max. | 50 (m) |
| Material hose | PVC with PVC-spiral |
| Bending radius min. | 65 (mm) |
| Pressure range (operating pressure) [bar] | -0.50 ... 0.50 bar |
| Operating temperature | -20 ... 70 °C |
| Color | grey |
Spare and Wear Parts Vacuum Tube Lifters JumboErgo / Jumbo Sprint
Design
Design
- Vacuum generation, lifting hoses, protective hoses, etc
Technical Data
Technical Data
- Wide range of spare and wear parts
- Vacuum generation, lifting hoses, protective hoses, etc
1 - 10 from 25 results
| Clamping range [mm] | 28.0 ... 32.0 mm |
| Material | Steel |
| Surface | galvanised |
SBL-260-520-IE3-TYP1
Part no.: 11.02.05.10156
Directly driven vacuum blower for tube lifter applications
| Sound pressure level at 50 Hz | 74 (dB(A)) |
| Voltage at 50 Hz | D230 V / Y400 V ±10 % |
| Voltage at 60 Hz | D265 V / Y460 V ±10 % |
| Suction rate (50 Hz) | 260 (m³/h) |
| Suction rate (60 Hz) | 300 (m³/h) |
| Vacuum (50 Hz) | -520 (mbar) |
| Rated power at 50 Hz | 4 (kW) |
| Rated power at 60 Hz | 4.8 (kW) |
| Version | IE3:EU/CN/IND |
| Approval | UL/CSA |
| Weight | 62 (kg) |
| Category | Electrical vacuum generation |
SKIRT-560x460 NK-35 SG35/45
Part no.: 11.03.14.10270
Skirt for vacuum suction cups for handling of porous workpieces
