| Number of ejectors | 1 |
| Performance class | E100 |
| Shape compact ejectors | Blow-off function |
| Additional function ejector | Exhaust duct axial |
High flexibility thanks to axial or lateral mounting of the gripper
Ready-to-connect, compact gripping unit with integrated vacuum generation
Very high volume flow enables safe gripping, even with porous materials
Minimized air consumption reduces operating costs
Controlled discharge of sucked air (optional) prevents contamination of the process area

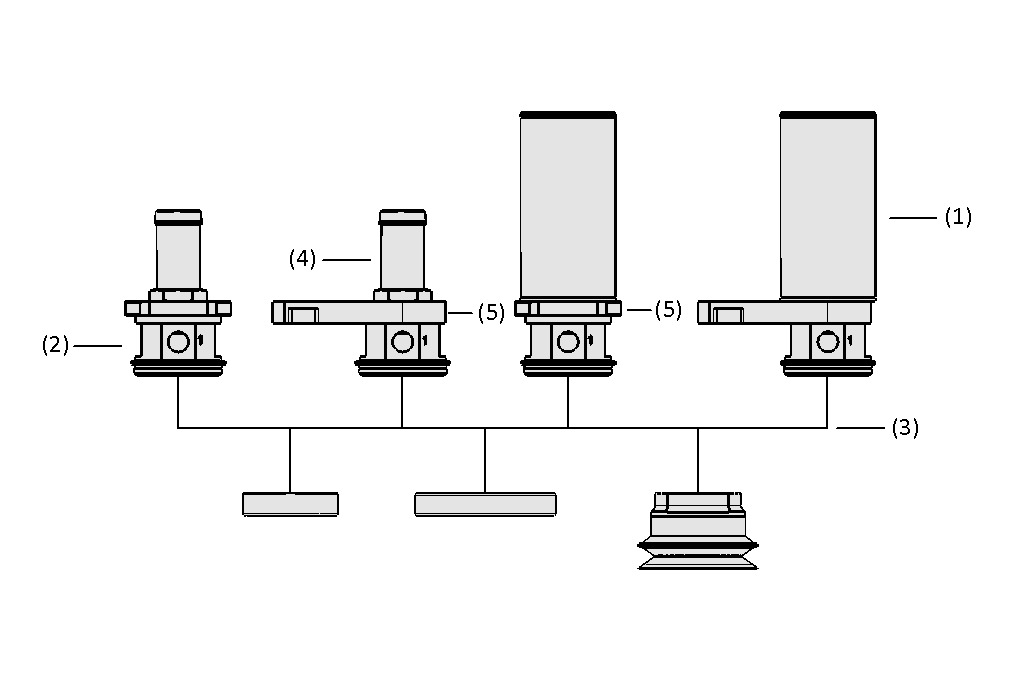

Design
Design
- Quick-change contact areas (3) with various diameters
- Anodized aluminum main body with integrated vacuum generation (2)
- Base model with capability for axial mounting (MA) or sideways mounting (MS) (5)
- Controlled exhaust air (4)
- Two compressed air connections for suction and blow off
Technical Data
Technical Data
- Suction rate: 270 l/min to 650 l/min
- Diameter suction plate: 20 mm to 50 mm
Performance Data
Performance Data
MetricImperial
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
1 - 4 from 4 results
| Number of ejectors | 1 |
| Performance class | E100 |
| Shape compact ejectors | Blow-off function |
| Mounting | sideways |
| Additional function ejector | Exhaust duct axial |
| Number of ejectors | 1 |
| Performance class | E100 |
| Shape compact ejectors | Blow-off function |
| Additional function ejector | Silencer axial |
| Number of ejectors | 1 |
| Performance class | E100 |
| Shape compact ejectors | Blow-off function |
| Mounting | sideways |
| Additional function ejector | Silencer axial |
