Bellows Suction Cups FSG (2.5 Folds)

Suction area (Ø) from 3 mm to 32 mm
Go directly to the products

Large selection of materials for a wide range of requirements (temperature-resistant, conductive, non-marking, dissipative)

High suction force and effective damping during placement on workpiece

Very high suction cup stroke due to 2.5 folds

Soft, tapered sealing lip adapts optimally to curved surfaces

Design

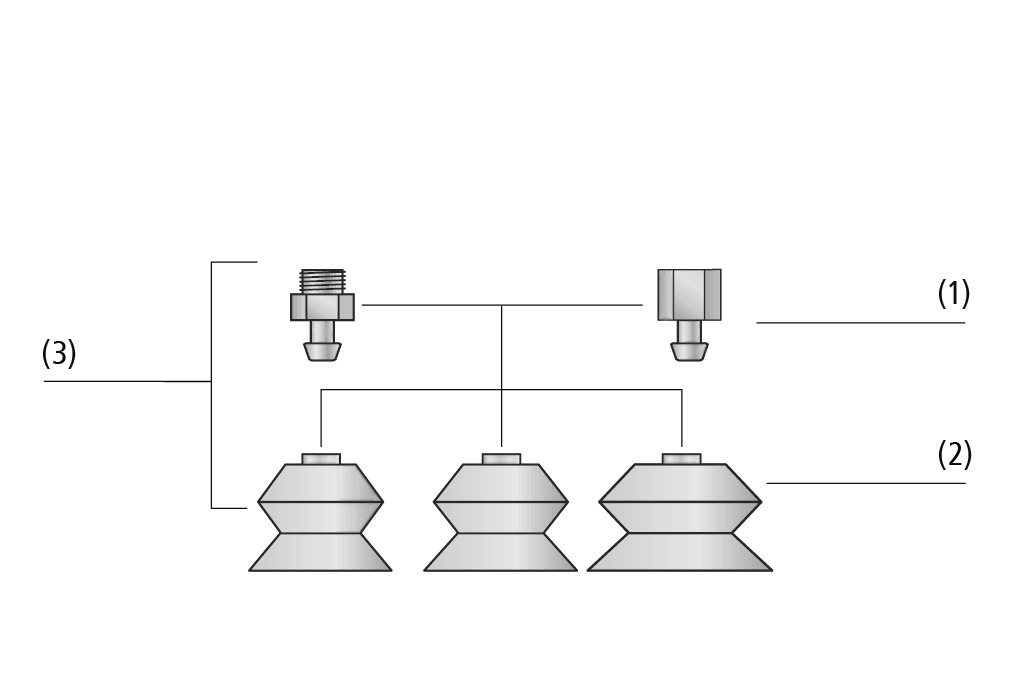

  • Robust and wear-resistant suction cup FSG (3) with single sealing lip, consisting of suction cup FG (2) with 2.5 folds and connection nipple (1)
  • All nipples are plugged in
  • With each nipple family, the replacement cups and nipples can be combined as desired
Technical Data
  • Diameter: 3 to 32 mm
  • Material: HT1, NBR, NBR-CO, NBR-ESD, SI, SI-CO
  • Connection nipple plugged into elastomer part
  • Conductive, dissipative and mark-free variants

Filter results

Size
Suction cup material
Thread G1
Product family
Height H
Spring stroke Z
Labeling
Industry sector

1 - 10 from 171 results

FSG 3 HT1-60 M3-AG

Part no.: 10.01.06.03711

Bellows suction cup (round) for very uneven workpieces

Size3
Suction cup materialHigh temperature material HT1
Material hardness [Shore A]60 (Shore A)
Nipple materialAluminum
ConnectionM3-M
Number of folds2.5
Vacuum connectionM3-M
  • NEW

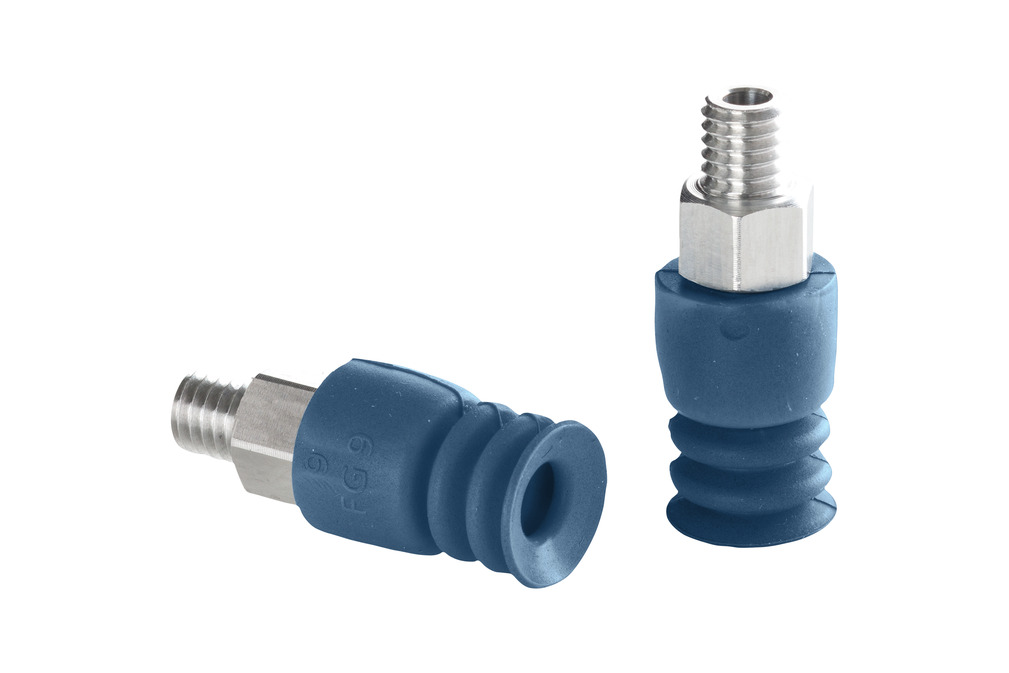

FSG 9 SI-MD-55 M5-AG

Part no.: 10.01.06.05705

Bellows suction cup (round) for very uneven workpieces

Size9
Suction cup materialSilicone SI metal detectable
Material hardness [Shore A]55 (Shore A)
Material characteristicsFDA-compatible
Nipple materialAluminum
ConnectionM5-M
Number of folds2.5
  • NEW

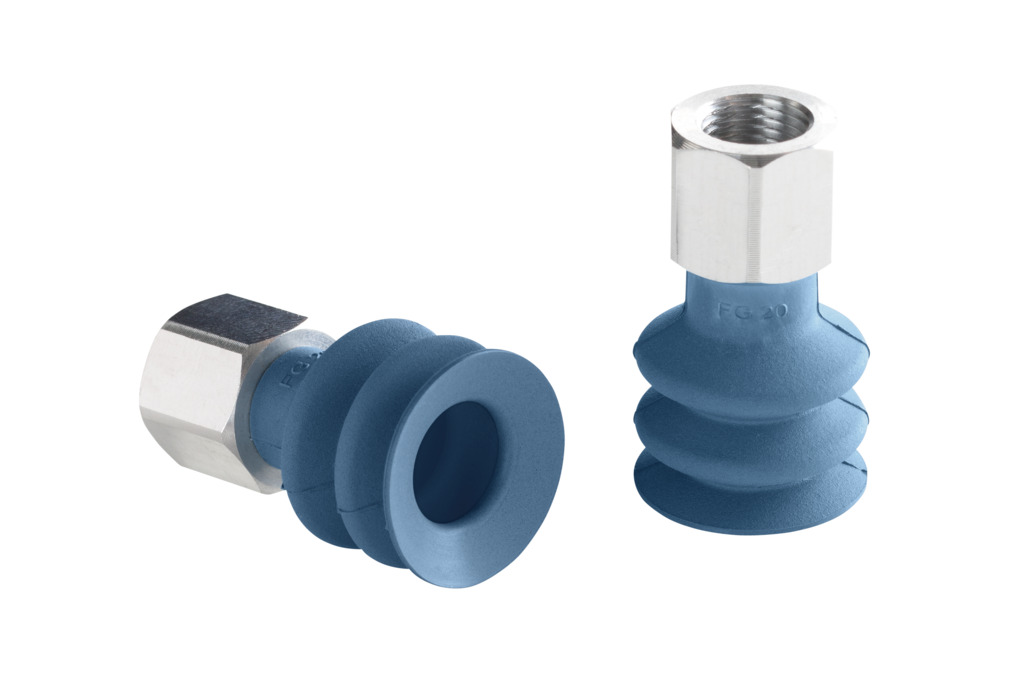

FSG 20 SI-MD-55 G1/8-IG

Part no.: 10.01.06.05715

Bellows suction cup (round) for very uneven workpieces

Size20
Suction cup materialSilicone SI metal detectable
Material hardness [Shore A]55 (Shore A)
Material characteristicsFDA-compatible
Nipple materialAluminum
ConnectionG1/8"-F
Number of folds2.5
  • NEW

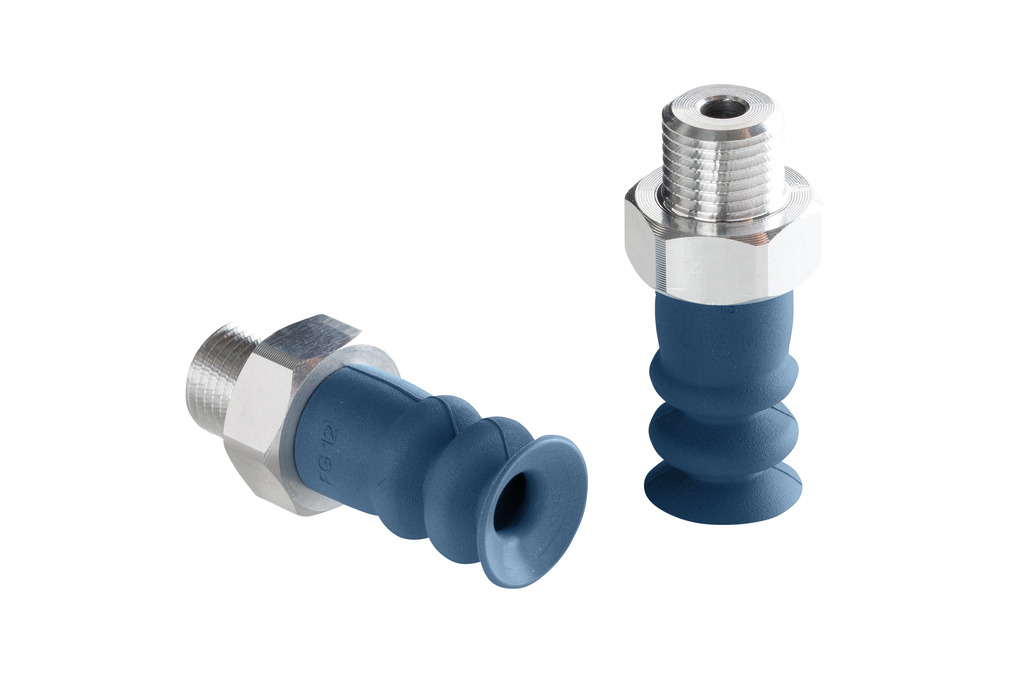

FSG 12 SI-MD-55 G1/8-AG

Part no.: 10.01.06.05707

Bellows suction cup (round) for very uneven workpieces

Size12
Suction cup materialSilicone SI metal detectable
Material hardness [Shore A]55 (Shore A)
Material characteristicsFDA-compatible
Nipple materialAluminum
ConnectionG1/8"-M
Number of folds2.5
  • NEW

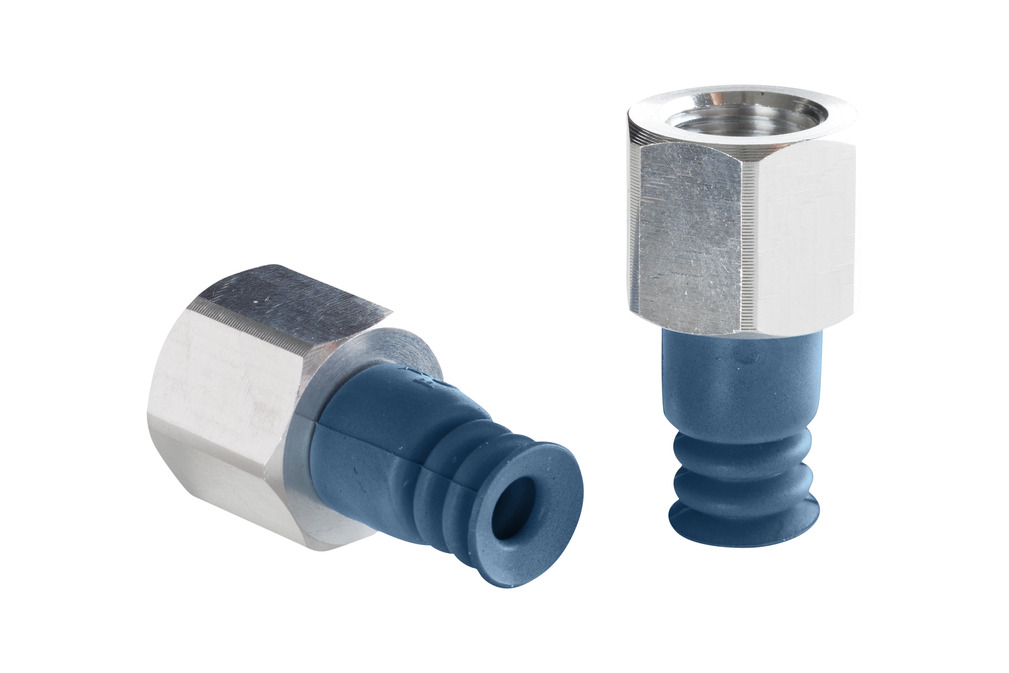

FSG 9 SI-MD-55 G1/8-IG

Part no.: 10.01.06.05703

Bellows suction cup (round) for very uneven workpieces

Size9
Suction cup materialSilicone SI metal detectable
Material hardness [Shore A]55 (Shore A)
Material characteristicsFDA-compatible
Nipple materialAluminum
ConnectionG1/8"-F
Number of folds2.5
FSG 3 HT1-60 M5-AG

Part no.: 10.01.06.03716

Bellows suction cup (round) for very uneven workpieces

Size3
Suction cup materialHigh temperature material HT1
Material hardness [Shore A]60 (Shore A)
Nipple materialAluminum
ConnectionM5-M
Number of folds2.5
Vacuum connectionM5-M
FSG 3 NBR-55 M3-AG

Part no.: 10.01.06.03712

Bellows suction cup (round) for very uneven workpieces

Size3
Suction cup materialNitrile rubber NBR
Material hardness [Shore A]55 (Shore A)
Nipple materialAluminum
ConnectionM3-M
Number of folds2.5
Vacuum connectionM3-M
FSG 3 NBR-55 M5-AG

Part no.: 10.01.06.03717

Bellows suction cup (round) for very uneven workpieces

Size3
Suction cup materialNitrile rubber NBR
Material hardness [Shore A]55 (Shore A)
Nipple materialAluminum
ConnectionM5-M
Number of folds2.5
Vacuum connectionM5-M
FSG 3 NBR-CO-55 M3-AG

Part no.: 10.01.06.03714

Bellows suction cup (round) for very uneven workpieces

Size3
Suction cup materialNitrile rubber NBR-conductive
Material hardness [Shore A]55 (Shore A)
Nipple materialAluminum
ConnectionM3-M
Number of folds2.5
Vacuum connectionM3-M
FSG 3 NBR-CO-55 M5-AG

Part no.: 10.01.06.03719

Bellows suction cup (round) for very uneven workpieces

Size3
Suction cup materialNitrile rubber NBR-conductive
Material hardness [Shore A]55 (Shore A)
Nipple materialAluminum
ConnectionM5-M
Number of folds2.5
Vacuum connectionM5-M
