| Nozzle diameter | 0.5 (mm) |
| Additional function ejector | Silencer axial |
| Degree of evacuation | 85 (%) |
| Connection | Hose D4(1)-D4(2) |
| Optimal operating pressure | 4.5 (bar) |
| Suction rate (max.) | 8 (l/min) |
| Air consumption suction | 13.5 (l/min) |
Compact, lightweight plastic housing optimized for decentralized vacuum supply in highly dynamic processes
Fine power gradation (six levels) for minimum air consumption
Compact and easy to install, since connections either with thread or plug-in connection
Open, maintenance-friendly silencer
Design
Design

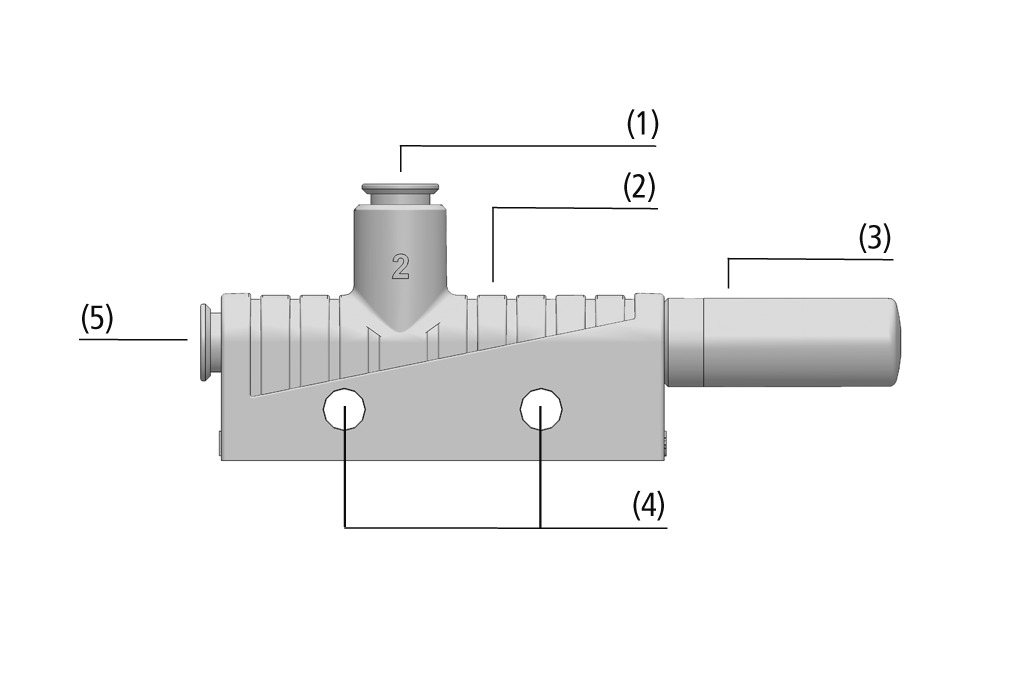

- One piece housing (2) made of light, impact resistant plastic
- Connection of compressed air (5) and vacuum (1) with quick action push-in coupling (S01 to S03) or threaded holes (G01 to G03)
- Open silencer (3)
- Vacuum generator with single-stage nozzle, available in six power ratings, 0.5 to 2.5 mm
- Can be fixed horizontally with mounting holes (4) or vertically with the base on a mounting plate
Technical Data
Technical Data
- Suction rate up to 215 l/min
- Max. vacuum: 85 %
- Plastic housing
Performance Data
Performance Data
MetricImperial
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| Croatian |
The documentation is also fully available in English.
| Documents | Language |
|---|---|
| English |
1 - 6 from 6 results
| Nozzle diameter | 0.7 (mm) |
| Additional function ejector | Silencer axial |
| Degree of evacuation | 85 (%) |
| Connection | Hose D4(1)-D4(2) |
| Optimal operating pressure | 4.5 (bar) |
| Suction rate (max.) | 16 (l/min) |
| Air consumption suction | 22 (l/min) |
| Nozzle diameter | 1 (mm) |
| Additional function ejector | Silencer axial |
| Degree of evacuation | 85 (%) |
| Connection | Hose D6(1)-D8(2) |
| Optimal operating pressure | 4.5 (bar) |
| Suction rate (max.) | 37.7 (l/min) |
| Air consumption suction | 48 (l/min) |
| Nozzle diameter | 1.5 (mm) |
| Additional function ejector | Silencer axial |
| Degree of evacuation | 85 (%) |
| Connection | Hose D6(1)-D8(2) |
| Optimal operating pressure | 4.5 (bar) |
| Suction rate (max.) | 71 (l/min) |
| Air consumption suction | 105 (l/min) |
| Nozzle diameter | 2 (mm) |
| Additional function ejector | Silencer axial |
| Degree of evacuation | 85 (%) |
| Connection | Hose D8(1)-D10(2) |
| Optimal operating pressure | 4.5 (bar) |
| Suction rate (max.) | 127 (l/min) |
| Air consumption suction | 197 (l/min) |
| Nozzle diameter | 2.5 (mm) |
| Additional function ejector | Silencer axial |
| Degree of evacuation | 85 (%) |
| Connection | Hose D8(1)-D10(2) |
| Optimal operating pressure | 4.5 (bar) |
| Suction rate (max.) | 215 (l/min) |
| Air consumption suction | 311 (l/min) |
