SBPL 75 HV
Part no.: 10.02.01.01649
Basic ejector with maximum suction capacity
| Size | 75 |
| Shape | High vacuum |
| Suction rate (max.) | 720 (l/min) |
| Air consumption suction | 305 (l/min) |
| Weight | 1.1 (kg) |

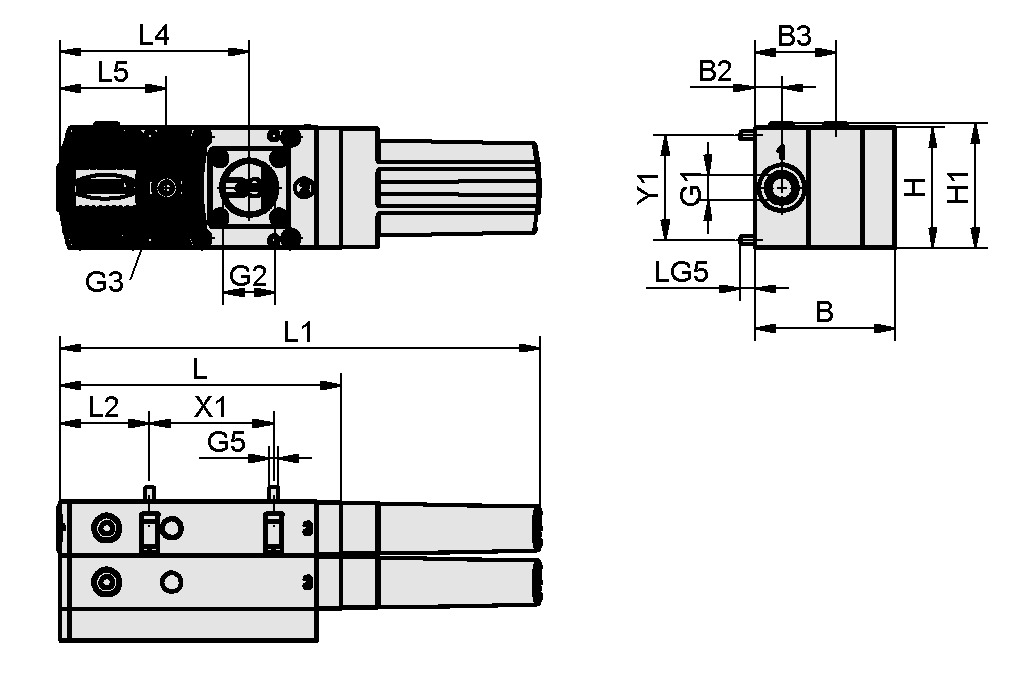

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 83 mm |
| B2 | 16 mm |
| B3 | 48 mm |
| G1 | G3/8"-F |
| G2 | G1"-F |
| G3 | G1/4"-F |
| G5 | M5-M |
| H | 72 mm |
| H1 | 74 mm |
| L | 167,5 mm |
| L1 | 285,3 mm |
| L2 | 54 mm |
| L4 | 113 mm |
| L5 | 64 mm |
| LG5 | 8,5 mm |
| X1 | 73,5 mm |
| Y1 | 62 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Size | 75 |
| Degree of evacuation | 90 % |
| Max. vacuum | 900 mbar |
| Suction rate (max.) | 720 l/min |
| Suction rate | 720 l/min |
| Suction rate | 990 l/min |
| Suction rate | 43,2 m³/h |
| Suction rate | 59,4 m³/h |
| Air consumption suction | 305 l/min |
| Air consumption suction | 18,75 m³/h |
| Sound pressure level free | 68 dB(A) |
| Sound pressure level suction | 62 dB(A) |
| Pressure range (operating pressure) [bar] | 2.0 ... 6.0 bar |
| Pressure range (operating pressure) [bar] | 29.0 ... 87.0 |
| Recommended hose internal diameter compressed air | 9 mm |
| Recommended hose internal diameter vacuum | 32 mm |
| Weight | 1,1 kg |
| Operating temperature | 0 ... 60 °C |
| Max. vacuum | 26,58 inHg |
| Product family | SBPL |
Performance Data
Performance Data
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Spare parts
ERS SEP-22 6xRUE-KLAP10.02.01.01450Spare part set
| Utilization design | Ejector module |
| Size | 22 |
| contains | 6x flap |
SD 102x71x33 SBPL/SCPL10.02.01.01585Silencer for vacuum generators
| Length L | 102 (mm) |
| Width B | 71 (mm) |
| Height H | 33 (mm) |
- EFFICIENT
SEP HV 3 16 2210.02.01.01397Multistagenozzle as a cartridge
| Shape | High vacuum |
| Number of stages | 3 |
| Hole diameter | 22 (mm) |
| Degree of evacuation | 90 (%) |
| Pressure range (operating pressure) [bar] | 2.0 ... 6.0 bar |
| Optimal operating pressure | 4 (bar) |
| Suction rate (max.) | 308.8 (l/min) |
| Air consumption suction | 103 (l/min) |
DI-RA 112.5x34.8 NBR-55 SBPL/SCPL10.02.01.01541Sealing frame
| Length L | 112.5 (mm) |
| Width B | 34.8 (mm) |
| Height H | 2.8 (mm) |
ERS SEP-22 6xRUE-KLAP10.02.01.01450Spare part set
| Utilization design | Ejector module |
| Size | 22 |
| contains | 6x flap |
Accessories
BEF-WIN 72x25x77 SBPL/SCPL10.02.01.01705Mouting bracket (inst.)
| Length L | 72 (mm) |
| Width B | 25 (mm) |
| Height H | 77 (mm) |
VAM-D 30x30 VP10 G1/8-AG10.07.02.00055Vacuum gauge (manometer)
for measurement and
monitoring of the vacuum
| Length L | 30 (mm) |
| Width B | 30 (mm) |
| Measuring range [bar] | -1,0 ... 10,0 bar |
| Vacuum connection | G1/8"-M |
VAM 40 V DR BAR10.07.02.00035Vacuum gauge (manometer)
for analogue measurement and
monitoring of the vacuum
| Outside diameter D | 40 (mm) |
| Measuring range [bar] | -1,00 ... 0,00 bar |
| Shape manometers | |
| Vacuum connection | G1/8"-M |
| with_02 | BAR scale |
VSi V D M8-410.06.02.00577Universal vacuum and pressure
switch with IO-Link function
| Measuring range [bar] | -1,0 ... 0,0 bar |
| Construction vacuum switch | with display |
| Electrical connection | Male connect M8, 4 pole |
| Indication | 2xLED |
| Protection type IP | IP 65 |
EMV 3 24V-DC 2/2 NC K-2P10.05.01.00366Solenoid valve EMV for direct
control of compressed air
| Internal diameter d | 6 (mm) |
| Length L | 64.5 (mm) |
SEV G1/8-IG G1/4-AG10.02.01.01471Quick release valve
| Outside diameter D | 19 (mm) |
| Length L | 37 (mm) |
| Thread G1 | G1/8"-F |
| Thread G2 | G1/4"-M |
ST 32 AL-EL10.02.01.01681Hose sleeve
| Material | Aluminum |
| Utilization design | Basic ejector |
| Outside diameter D | 32 (mm) |
| Length L | 4 (mm) |
| Width B | 46 (mm) |
VSL 27-20 PU-DS-AS TR10.07.09.00047Hose for vacuum and
compressed-air systems
| Outside diameter D | 27 (mm) |
| Internal diameter d | 20 (mm) |
| Length max. | 20 (m) |
| Material hose | PU, wire spiral, antistatic |
| Bending radius min. | 17 (mm) |
| Pressure range (operating pressure) [bar] | -1.00 ... 4.72 bar |
| Operating temperature | -40 ... 90 °C |
| Color | Transparent |
VSL 32-25 PU-DS-AS TR10.07.09.00051Hose for vacuum and
compressed-air systems
| Outside diameter D | 32 (mm) |
| Internal diameter d | 25 (mm) |
| Length max. | 20 (m) |
| Material hose | PU, wire spiral, antistatic |
| Bending radius min. | 20 (mm) |
| Pressure range (operating pressure) [bar] | -1.00 ... 3.86 bar |
| Operating temperature | -40 ... 90 °C |
| Color | Transparent |
VSL 42-32 PU-DS-AS TR10.07.09.00036Hose for vacuum and
compressed-air systems
| Outside diameter D | 42 (mm) |
| Internal diameter d | 32 (mm) |
| Length max. | 20 (m) |
| Material hose | PU, wire spiral, antistatic |
| Bending radius min. | 25 (mm) |
| Pressure range (operating pressure) [bar] | -1.00 ... 3.77 bar |
| Operating temperature | -40 ... 90 °C |
| Color | Transparent |
STF G3/4-IG N10.07.01.00007Dust filter
| Connection | G3/4"-F |
| Shape | Steel housing |
| Nominal flow rate | 42 (m³/h) |
| Filter pore size | 3 (µm) |
