Innospann Steel-Plate ISST-MPL and FlexMat SFM

Steel-Plate and Flexmat for use on Matrix-Plate MPL
제품으로 바로 이동

The modular system for use on the Matrix-Plate MPL can be retrofitted as required

Honeycomb structure of the suction points to increase the usable area for maximum vacuum clamping force

Milling at partial occupancy due to numerous vacuum chambers with integrated flow resistors

FlexMat optimized for production of cutouts and inexpensive and quickly replaceable in case of wear

Elastomer surface with special support withstands strongest lateral forces

디자인
  • Vacuum blocks ISBL made of aluminum (1) with double seal and magnetic pre-fixation on the Steel-Plate
  • Schmalz FlexMat SFM (2) for use directly on the Steel-Plate
  • Sealing magnets (3) for unused vacuum openings when used with vacuum blocks ISBL
  • Steel-Plate with vacuum openings (4)
  • Matrix-Plate MPL (5) as basic unit of the modular clamping system
기술 데이터
  • Steel-Plate ISST and elastomer mat with honeycomb suction points for metal and plastic processing
  • Extension for the clamping system Matrix-Plate MPL
  • For the production of cutouts
관련 문서

이 제품과 일치하는 문서는 이 섹션에서 사용할 수 있습니다.

서류언어
한국인

이 문서는 영어로도 제공됩니다.

서류언어
영어

필터 결과

Length L
Width B
산업 분야

결과 4 중 1 - 4개

ISST-MPL 300x200x3 SFM

부품 번호.: 10.01.28.00021

Steelplate for use with Matrix-Plate

Length L300 (mm)
Width B200 (mm)
Height H3 (mm)
TypeSFM

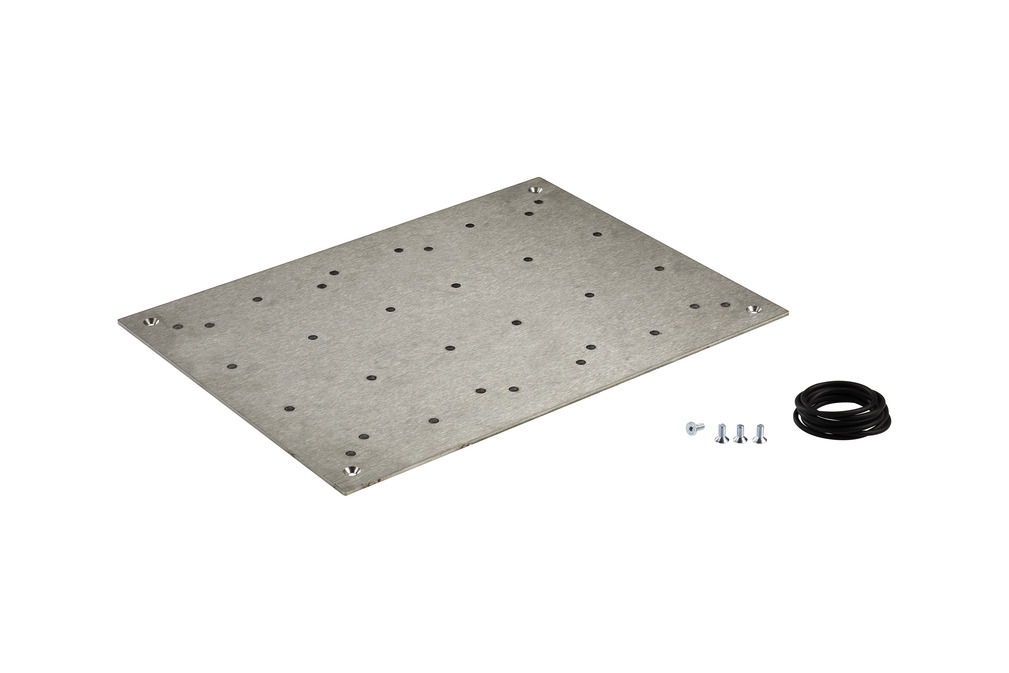

ISST-MPL 400x300x3 SFM

부품 번호.: 10.01.28.00022

Steelplate for use with Matrix-Plate

Length L400 (mm)
Width B300 (mm)
Height H3 (mm)
TypeSFM
ISST-MPL 600x400x3 SFM

부품 번호.: 10.01.28.00023

Steelplate for use with Matrix-Plate

Length L600 (mm)
Width B400 (mm)
Height H3 (mm)
TypeSFM

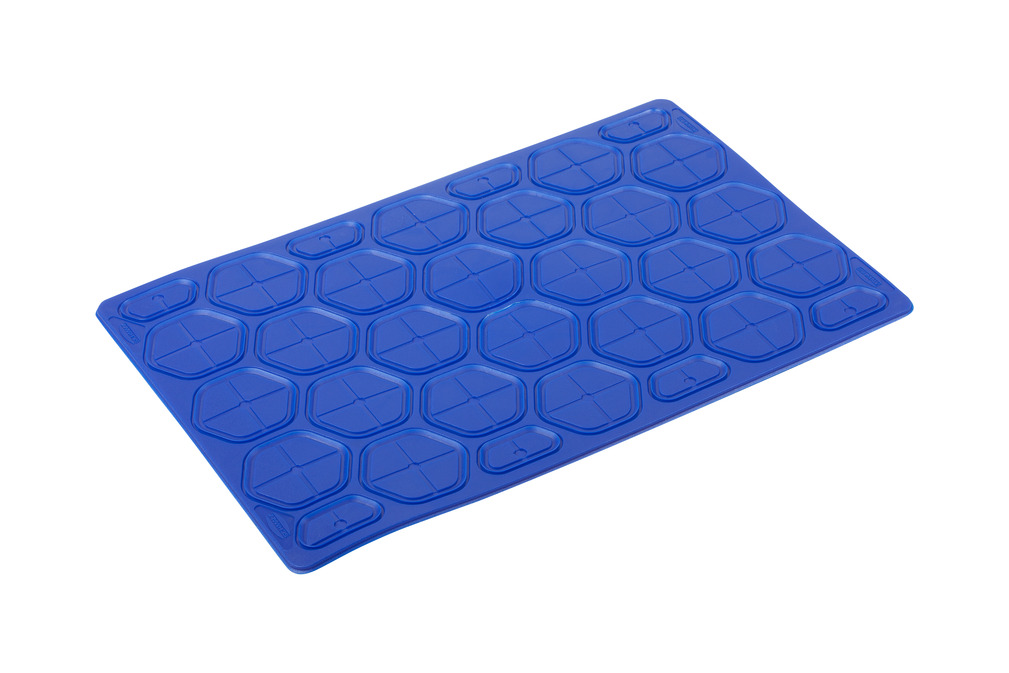

SFM-298.5x198.5

부품 번호.: 10.01.28.00005

Elastomer mat for fixing workpieces

MaterialPlastics
Utilization designMatrix-Plate
Length L298.5 (mm)
Width B198.5 (mm)
Height H2.5 (mm)
