VSL 12-9 PU MI-TR
Onderdeelnr.: 10.07.09.00037
Slang voor vacuüm- en persluchtsystemen
| Outside diameter D | 12 (mm) |
| Internal diameter d | 9 (mm) |
| Length max. | 50 (m) |
| Material hose | PU |
| Bending radius min. | 70 (mm) |
| Pressure range (operating pressure) [bar] | -0,95 ... 10,00 bar |
| Operating temperature | -20 ... 90 °C |
| Color | Melkachtig-transparant |
Ontwerpgegevens
Ontwerpgegevens
| Attribuut | Waarde |
|---|---|
| d | 9 mm |
| D | 12 mm |
Technische gegevens
Technische gegevens
| Attribuut | Waarde |
|---|---|
| Design hose type | 12-9 |
| Pressure range (operating pressure) [bar] | -0,95 ... 10,00 bar |
| Operating temperature | -20 ... 90 °C |
| Bending radius min. | 70 mm |
| Length max. | 50 m |
| Weight / Meter | 58 g/m |
| Weight / Meter | 0,06 kg/m |
| Material hose | PU |
| Product family | VSL |
CAD-gegevens
CAD-gegevens
Live CAD-model gebruiksvriendelijk
Nadat je op de downloadknop hebt geklikt, kun je het CAD-model in verschillende bestandsformaten downloaden. Als het voorbeeld niet correct wordt weergegeven op deze pagina, klik dan op de knop "Reload".
Documentatie
Documentatie
Accessoires
SSB 10-16 ST-VZ10.07.10.00001Slangklem voor borging van gladde
slangleidingen
| Clamping range [mm] | 10,0 ... 16,0 mm |
| Material | Steel |
| Surface | verzinkt |

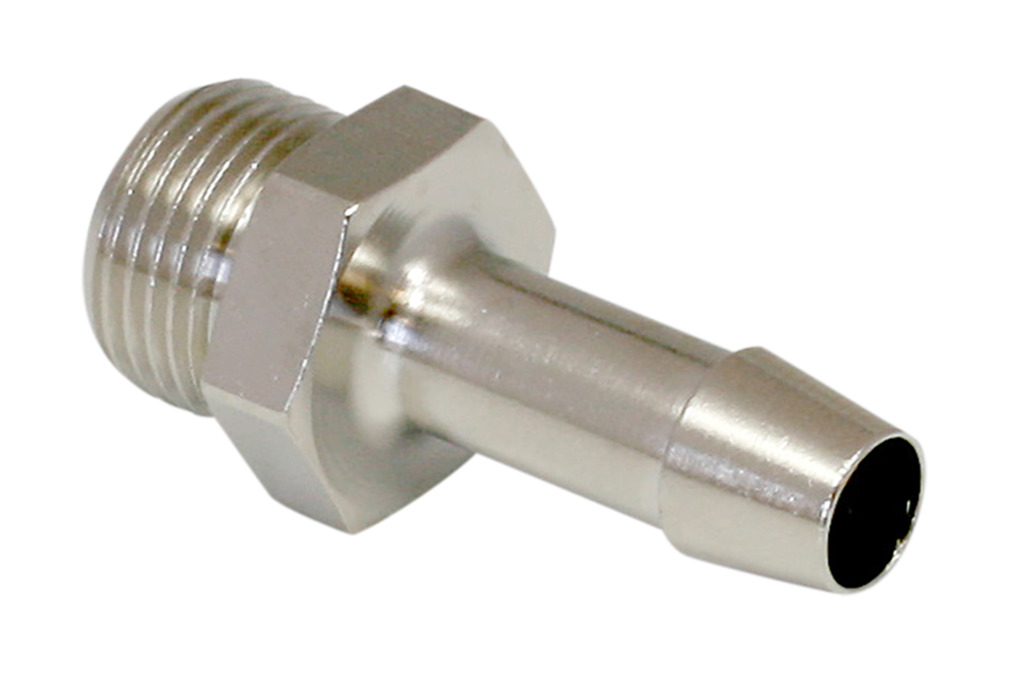

ST G1/2-AG 9 MS-V10.08.03.00161Slangtule
| Thread G1 | G1/2"-M |
| Hose inner diameter (recom.) d | 9 (mm) |
| Material | Brass |
| Surface | vernikkeld |
| Length L | 6.1 (mm) |
| Nominal diameter dn | 7.5 (mm) |

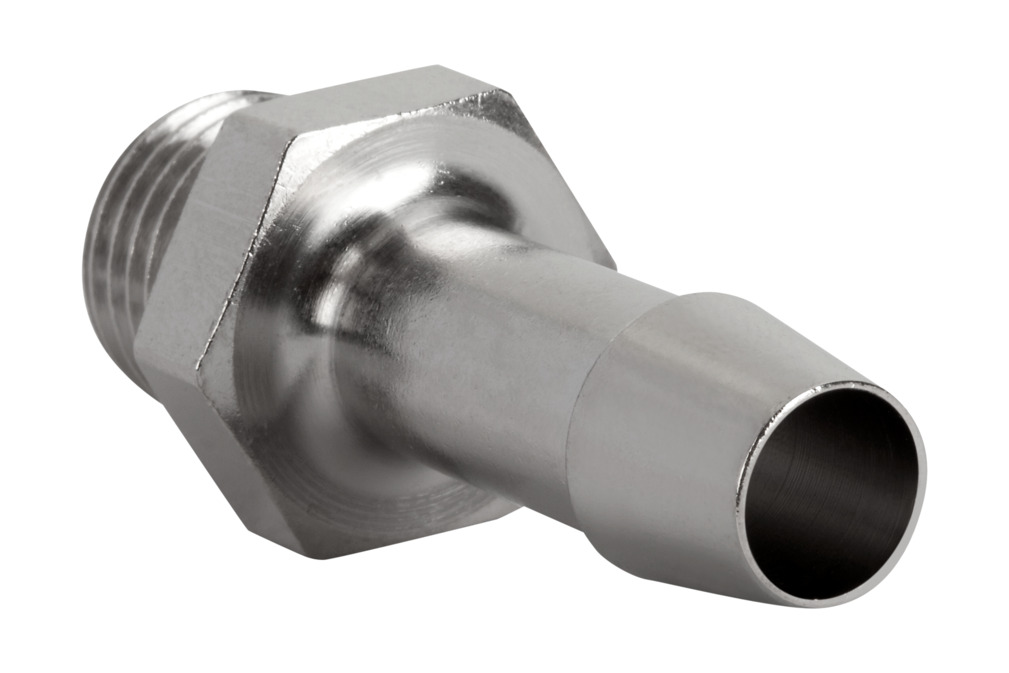

ST G1/4-AG 9 MS-V10.08.03.00157Slangtule
| Thread G1 | G1/4"-M |
| Hose inner diameter (recom.) d | 9 (mm) |
| Material | Brass |
| Surface | vernikkeld |
| Length L | 5 (mm) |
| Nominal diameter dn | 7.5 (mm) |
ST G1/8-AG 9 MS-V10.08.03.00155Slangtule
| Thread G1 | G1/8"-M |
| Hose inner diameter (recom.) d | 9 (mm) |
| Material | Brass |
| Surface | vernikkeld |
| Length L | 5 (mm) |
| Nominal diameter dn | 4 (mm) |
ST G3/8-AG 9 MS-V10.08.03.00159Slangtule
| Thread G1 | G3/8"-M |
| Hose inner diameter (recom.) d | 9 (mm) |
| Material | Brass |
| Surface | vernikkeld |
| Length L | 6 (mm) |
| Nominal diameter dn | 7.4 (mm) |
STV-GE G1/2-AG 1210.08.02.00210Schroefverbinding in rechte
uitvoering
| Thread G1 | G1/2"-M |
| Outer hose diameter | 12 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 19.5 (mm) |
| Length L | 24 (mm) |
STV-GE G1/4-AG 1210.08.02.00208Schroefverbinding in rechte
uitvoering
| Thread G1 | G1/4"-M |
| Outer hose diameter | 12 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 19.5 (mm) |
| Length L | 29 (mm) |
STV-GE G3/8-AG 1210.08.02.00209Schroefverbinding in rechte
uitvoering
| Thread G1 | G3/8"-M |
| Outer hose diameter | 12 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 19.5 (mm) |
| Length L | 23.6 (mm) |

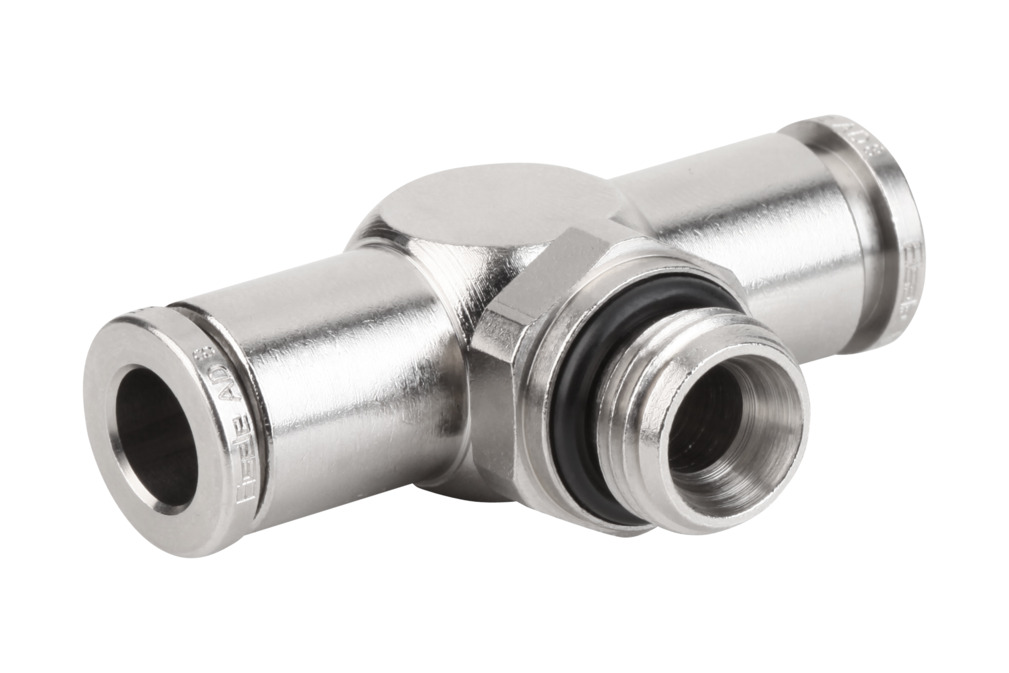

STV-T G1/4-AG 1210.09.02.00045Steekschroefverbinding T
| Thread G1 | G1/4"-M |
| Outer hose diameter | 12 (mm) |
| Material | Brass |
| Operating temperature | °C |
| Length L | 69 (mm) |
STV-W G1/2-AG 1210.08.02.00164Schroefverbinding in zwenkbare
haakse uitvoering
| Thread G1 | G1/2"-M |
| Outer hose diameter | 12 (mm) |
| Material | Nickel plated |
| Operating temperature | -20 ... 80 °C |
| Length L | 34.3 (mm) |
STV-W G1/4-AG 1210.08.02.00162Schroefverbinding in zwenkbare
haakse uitvoering
| Thread G1 | G1/4"-M |
| Outer hose diameter | 12 (mm) |
| Material | Nickel plated |
| Operating temperature | -20 ... 80 °C |
| Length L | 34.5 (mm) |
STV-W G3/8-AG 1210.08.02.00163Schroefverbinding in zwenkbare
haakse uitvoering
| Thread G1 | G3/8"-M |
| Outer hose diameter | 12 (mm) |
| Material | Nickel plated |
| Operating temperature | -20 ... 80 °C |
| Length L | 34.1 (mm) |

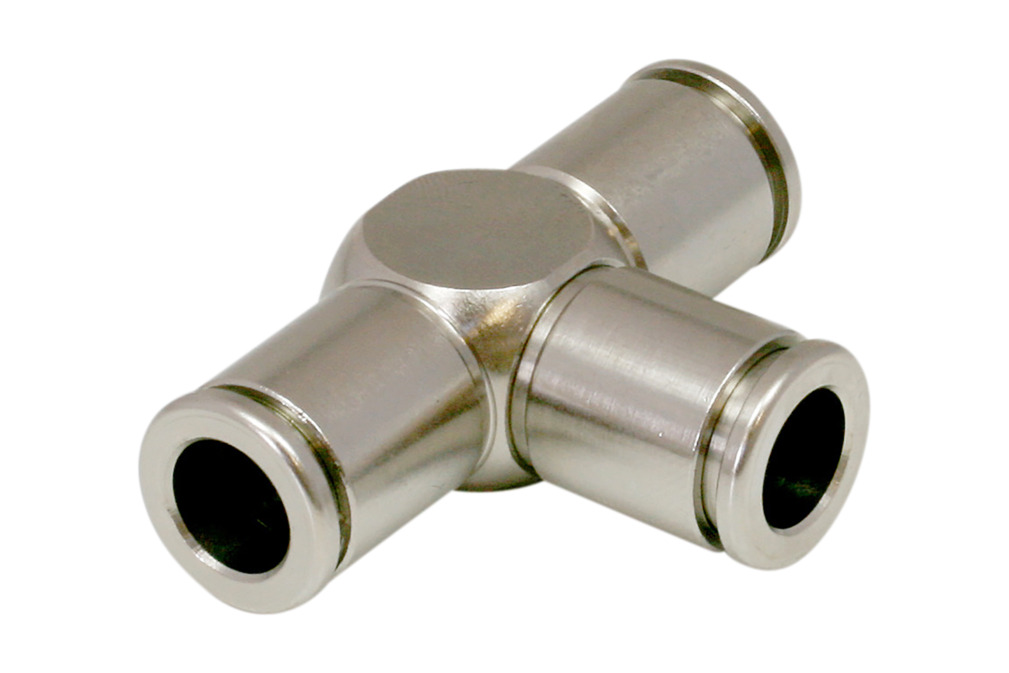

SVB-T 1210.09.02.00023Koppeling T
| Outer hose diameter | 12 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Length L | 69 (mm) |
