SPB2f 50 SI-55 G1/8-AG
Część nr.: 10.01.06.03652
Bellows suction cup (round) for very uneven workpieces
| Size | 50 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Thread G1 | G1/8"-M |
| Number of folds | 2.5 |

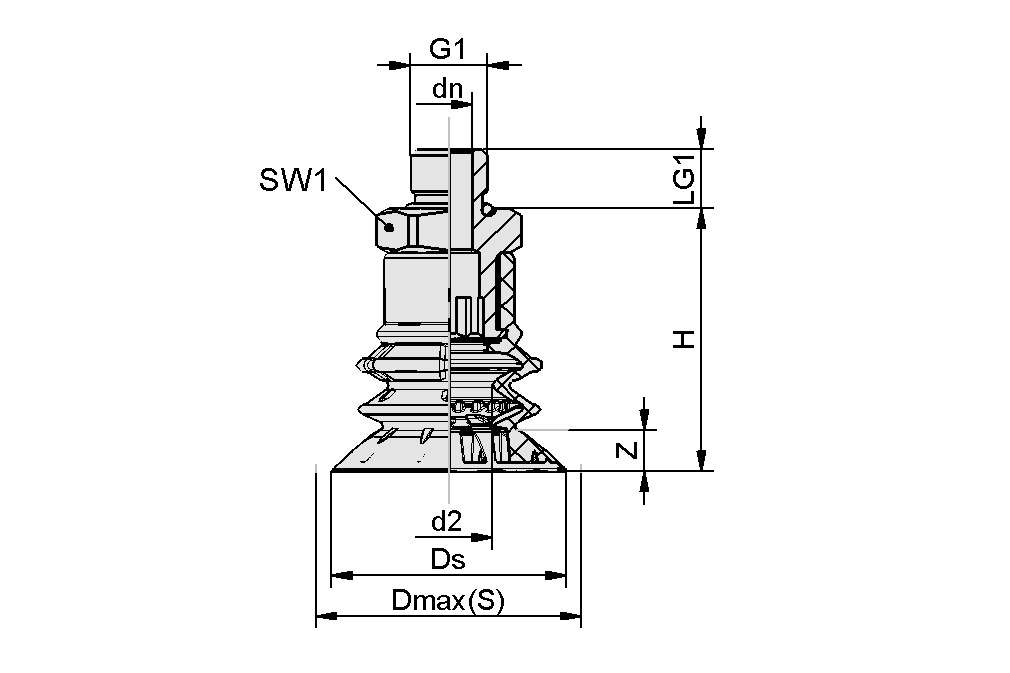

Dane projektowe
Dane projektowe
| Atrybut | Wartość |
|---|---|
| d2 | 21 mm |
| dn | 4 mm |
| Dmax(S) | 52 mm |
| Ds | 49,7 mm |
| G1 | G1/8"-M |
| H | 53,1 mm |
| LG1 | 7,5 mm |
| SW1 | 27 mm |
| Z (Stroke) | 9 mm |
Dane techniczne
Dane techniczne
| Atrybut | Wartość |
|---|---|
| Suction force at -200 mbar | 13,7 N |
| Suction force at -400 mbar | 27,3 N |
| Suction force (-600mbar) | 41 N |
| Volume | 26,45 cm³ |
| Hose inner diameter (recom.) d | 12 mm |
| Size | 50 |
| Number of folds | 2,5 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 Shore A |
| Weight | 44,6 g |
| Product family | SPB2f |
Dane CAD
Dane CAD
Łatwy w użyciu model CAD na żywo
Po kliknięciu przycisku pobierania można pobrać model CAD w różnych formatach plików. Jeśli podgląd nie jest wyświetlany poprawnie na tej stronie, kliknij przycisk "Przeładuj".
Dokumentacja
Dokumentacja
Części zamienne
SC 090 G1/8-AG10.01.06.03269Connection element for suction pad
""SchmalzConnector""
| Connection type | 090 |
| Vacuum connection | G1/8"-M |
| Length L1 | 31 (mm) |
| Fitting length | 7.5 (mm) |
| Nominal diameter dn | 4 (mm) |
SPB2f 50 SI-55 SC09010.01.06.03560Bellows suction cup (round)
for very uneven workpieces
| Size | 50 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Material characteristics | FDA-compatible |
| Number of folds | 2.5 |
Akcesoria
SIEB 19.5x1 MS-A2 10310.07.01.00321Screen
| Outside diameter D | 19.5 (mm) |
| Length L | 1 (mm) |
| Material | Brass / stainless steel |
| Filter pore size | 103 (µm) |
SSB 20-32 ST-VZ10.07.10.00003Hose clamp for securing smooth
hoses
| Clamping range [mm] | 20.0 ... 32.0 mm |
| Material | Steel |
| Surface | galvanised |
