ISAP-R 175x175x7 30/50
Part no.: 10.01.15.00184
Adapter-Plate for grid tables
| Dimension (LxW) | 175x175 |
| Length L | 175 (mm) |
| Width B | 175 (mm) |
| Height H | 7 (mm) |
| Grid | 30/50 |
| Recommended slot width x slot depth [mm] | 5/7 |
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 175 mm |
| H | 7 mm |
| L | 175 mm |
Documentation
Documentation
Spare parts
ISMST 19-7 4ISMST10.01.14.00847Sealing magnet for
clamping system Innospann
| Outside diameter D | 7 (mm) |
| Height H | 11.5 (mm) |

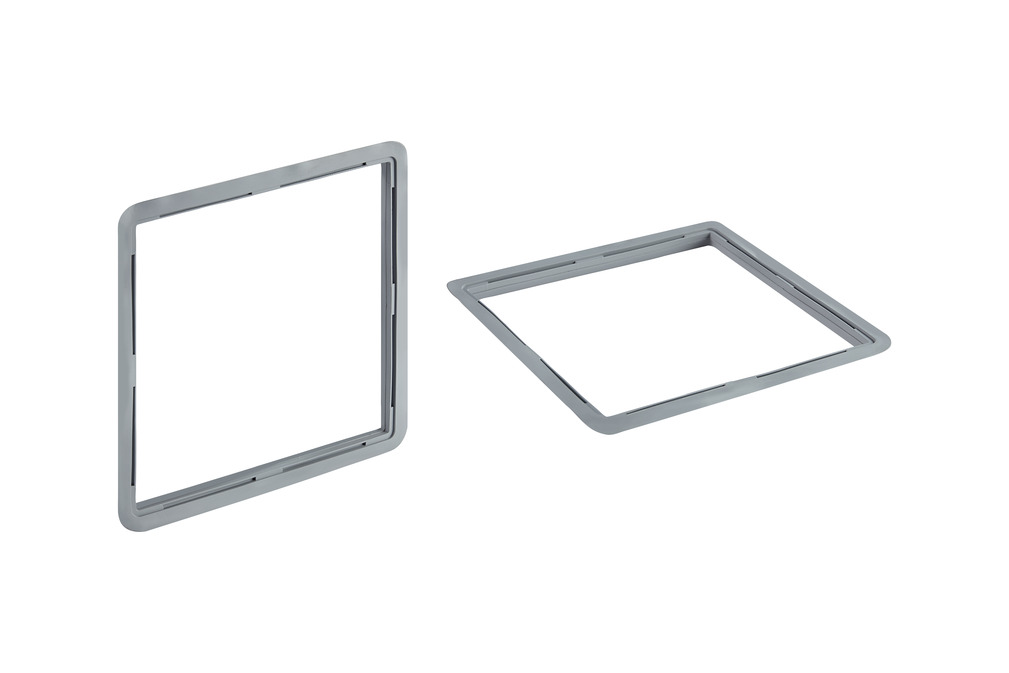

ISDR 167x167x9.3 NBR-5510.01.15.00182Sealing frame
| Width B | 167 (mm) |
| Height H | 9.3 (mm) |
| Length L | 167 (mm) |
| Suction cup material | Nitrile rubber NBR-55 |
Accessories
ISCUP Cup 1 80x80x3010.01.15.00003Suction cup for Innospann
| Dimension (LxW) | 80 x 80 |
| Length L | 80 (mm) |
| Width B | 80 (mm) |
| Height H | 30 (mm) |
ISCUP Cup 2 80x40x3010.01.15.00004Suction cup for Innospann
| Dimension (LxW) | 80 x 40 |
| Length L | 80 (mm) |
| Width B | 40 (mm) |
| Height H | 30 (mm) |
ISCUP Cup 3 80x28x3010.01.15.00005Suction cup for Innospann
| Dimension (LxW) | 80 x 28 |
| Length L | 80 (mm) |
| Width B | 28 (mm) |
| Height H | 30 (mm) |
ISMB 80x80x810.01.15.00188Mono-Base for Steelplate
and Adapterplate
| Dimension (LxW) | 80x80 |
| Base area | 80 x 80 mm |
| Length L | 80 (mm) |
| Width B | 80 (mm) |
| Height H | 8 (mm) |
ISMST 19-7 4ISMST10.01.14.00847Sealing magnet for
clamping system Innospann
| Outside diameter D | 7 (mm) |
| Height H | 11.5 (mm) |
