Aluminum Overhead Crane Systems

Product Inquiries:

We would be happy to help you design a vacuum lifting device and a compatible crane.

Product Inquiry

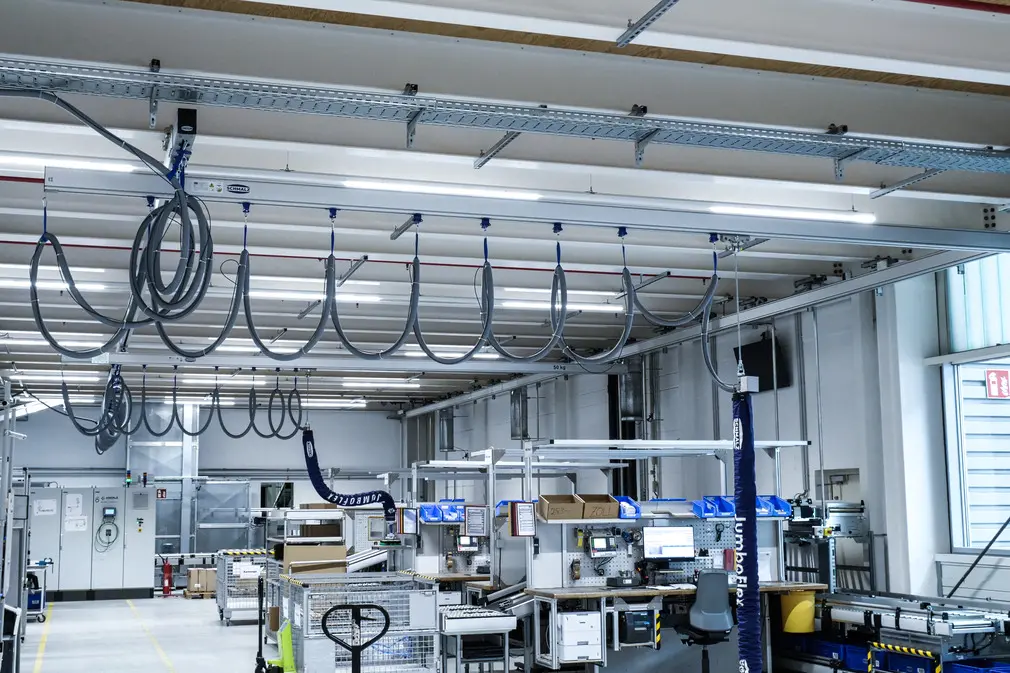

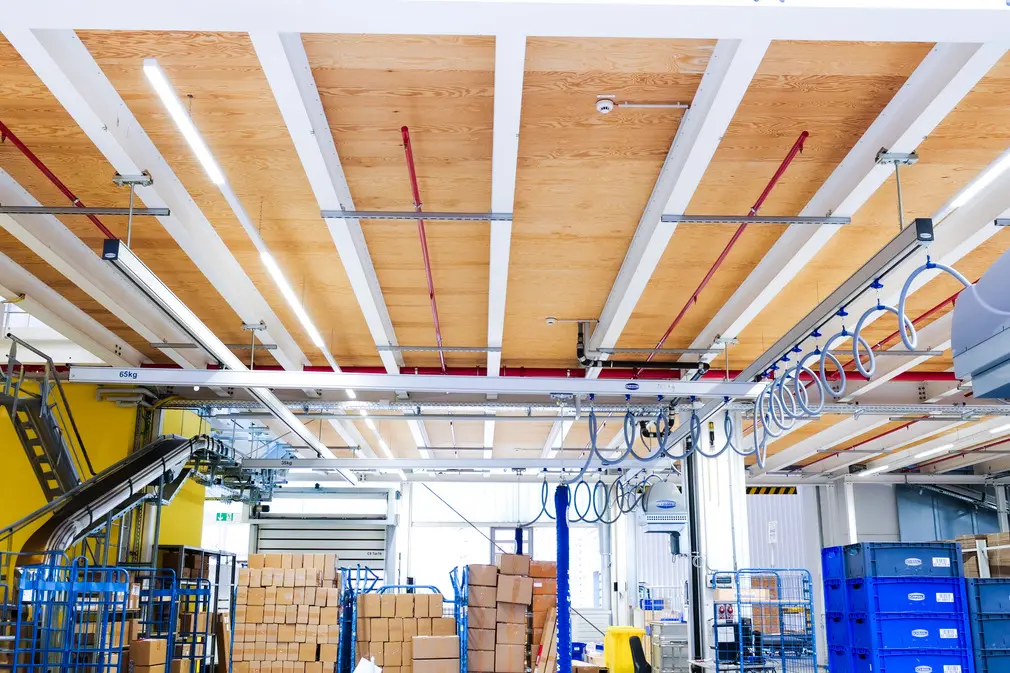

Schmalz aluminum overhead crane systems offer impressive low friction operation. A favorable weight-load ratio ensures that even heavy work pieces are handled effortlessly. The equal distribution of loads on all the supporting rollers prevents the transport trolleys from tilting. The modular design allows the crane system to be attached to any steel structure or other superstructure.

Application
  • Modular crane system permitting the flexible and cost efficient configuration of individual crane solutions
  • Suitable for use in almost any internal production, assembly, or logistics process for the manual or automatic handling of all types of loads
  • Particularly suited to large work spaces
  • Maximum load of up to 1,200 kg
Product Highlights
  • Ergonomic handling thanks to outstanding low friction operation and low moving mass
  • Reduced processing times thanks to high speed operation and positioning accuracy
  • Aligns to individual requirements in terms of budget and load capacity
  • High reliability thanks to high quality, wear resistant components
  • Maximum safety thanks to independent force calculations of all load bearing components according to the FEB method
  • Easy mounting thanks to intelligent modular system
  • Designed according to the state of the art (DIN EN 13001: Hoist class HC2, hoist type HD1)
Documentation

Modular System

(1) Transport trolley

  • Connection of crane bridge and hoist
  • Electrical traction drive as an option

(2) Aluminum crane bridge

(3) Chain hoist

(4) Energy supply

  • Trailing cable or conductor line

(5) Aluminum crane runway

  • Lightweight and robust
  • Weights from 3 kg/m

(6) Modular ceiling suspension system

  • Optimum connection to existing building structures

Vacuum Lifting Devices

Vacuum lifting devices from Schmalz make it possible to make manual processes ergonomic. Our crane systems are the perfect addition to our vacuum lifting devices. Load capacities of the crane systems are based on the vacuum lifting devices.

Schmalz divides its product portfolio of vacuum lifting devices into vacuum tube lifters of the type Jumbo and vacuum lifting devices of the type VacuMaster. Schmalz can provide you with a complete workplace solution consisting of a crane system and a vacuum lifting device.

Vacuum Tube Lifters Jumbo

  • Move goods weighing up to 300 kg quickly and easily
  • Lifting unit, operating unit, suction pads and vacuum generator configurable
  • Lifting and lowering the load using vacuum

Vacuum Lifting Devices VacuMaster

  • Move heavy loads weghing up to several tons ergonomically and securely
  • Basic modules, operator handles, load beams and suction plates configurable
  • Lifting and lowering the load using a chain hoist
