SHF 70 NK-45 N041
Osanro: 10.01.01.11682
Flat suction cup (round) for highly dynamic handling of wood
| Size | 70 |
| Suction cup material | Natural rubber NK |
| Material hardness [Shore A] | 45 (Shore A) |

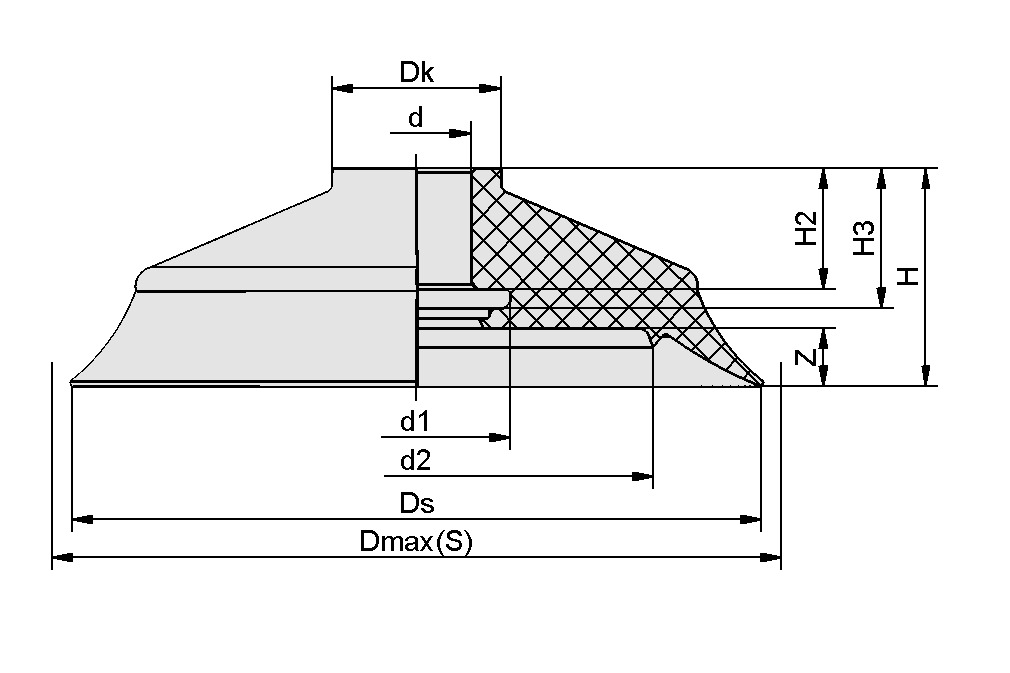

Suunnitteludata
Suunnitteludata
| Attribuutti | Arvo |
|---|---|
| d | 7,5 mm |
| d1 | 17 mm |
| d2 | 48 mm |
| Dk | 17 mm |
| Dmax(S) | 74 mm |
| Ds | 70 mm |
| H | 22,2 mm |
| H2 | 12,8 mm |
| H3 | 14,3 mm |
| Z (Stroke) | 4 mm |
Tekniset tiedot
Tekniset tiedot
| Attribuutti | Arvo |
|---|---|
| Size | 70 |
| Nipple family | N 041 |
| Number of folds | 0 |
| Lateral force | 145 N |
| Suction force (-600mbar) | 155 N |
| Suction cup material | Natural rubber NK |
| Volume | 16,21 cm³ |
| Workpiece radius min. (convex) | 95 mm |
| Weight | 28,2 g |
| Product family | SHF |
CAD-tiedot
CAD-tiedot
Live CAD-malli helppokäyttöinen
Kun napsautat latauspainiketta, voit ladata CAD-mallin eri tiedostomuodoissa. Jos esikatselu ei näy oikein tällä sivulla, napsauta "Lataa uudelleen" -painiketta.
Dokumentointi
Dokumentointi
Lisätarvikkeet
SA-NIP N041 G1/4-AG DN44010.01.01.11772Suction cup connection nipple
| Thread G1 | G1/4"-M |
| Fitting length | 4 (mm) |
| Material | Aluminum |
SA-NIP N041 G1/4-IG DN44010.01.01.11822Suction cup connection nipple
| Thread G1 | G1/4"-F |
| Fitting length | 15 (mm) |
| Material | Aluminum |
SIEB 15x0.8 MS-A2 0.103/0.0710.07.01.00211Screen protects the vacuum system
from contamination
| Outside diameter D | 15 (mm) |
| Length L | 0.8 (mm) |
| Material | Brass / stainless steel |
| Mesh size | 0.103 (mm) |
| Wire diameter | 0.06 (mm) |
TVN G1/4-AG 8.4 N04110.05.10.00058Connection nipple with integrated
touch valve
| Thread G1 | G1/4"-M |
| Spring stroke Z | 8.4 (mm) |
| Nipple | N 041 |
