Compact Ejectors SCPMb / SCPMc / SCPMi

Suction rate from 2 l/min to 30 l/min

Go directly to the products

Maximized suction power in the smallest space

Robust ejector with low interference contour

Central air supply and independent vacuum circuits allow pneumatic interlocking with up to 16 ejectors

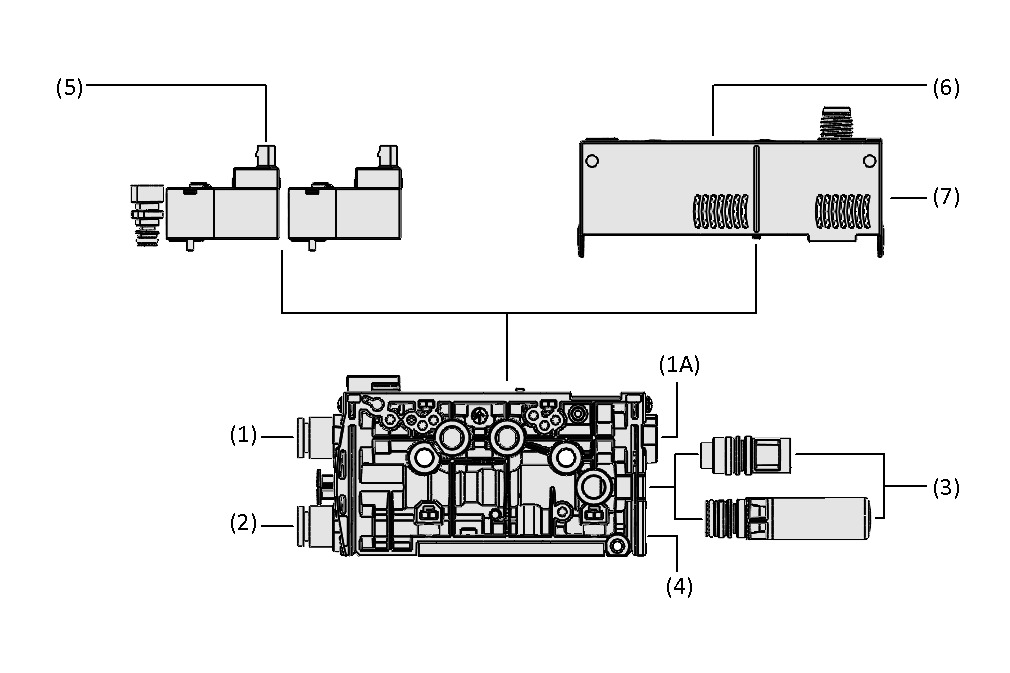

Design

Minimal footprint thanks to compact main body made from high-strength plastics with individual control module (7)
3-digit display with two-button operation and electrical connection M8, 6-pin plug (6)
Pneumatic valves optionally integrated (6) or directly mounted (5) for switching function NO or NC
Screw for adjusting blow off function (4)
Optional: Connector for external vacuum supply "EV"; connector for external blow-off medium "EB" (1A)

Technical Data

Suction capacity up to 28 l/min
Max. vacuum: 92 %
Main body made of plastics

Performance Data

MetricImperial

Documentation

The matching documentation for this product is available in this section.

Documents	Language
Product family overview	Croatian

The documentation is also fully available in English.

Documents	Language
Product family overview	English

Software

The matching software for this product is available in this section.

Software	Language
Software function module	English

1 - 10 from 20 results

SCPMb 03 S01 NC AAB

Part no.: 10.02.02.05732

Mini-pump, compact ejector with minimum size

Nozzle size	0,3 mm
Connection	Hose D4(1)-D4(2)
Suction rate (max.)	2 (l/min)
Air consumption suction	4 (l/min)
Sound pressure level free	51 (dB(A))
Pressure range (operating pressure) [bar]	2.0 ... 6.0 bar
Max. vacuum	870 (mbar)
Control valve	Normally closed
Protection type IP	IP 40 (with plug)

SCPMb 03 S01 NO AAA

Part no.: 10.02.02.05731

Mini-pump, compact ejector with minimum size

Nozzle size	0,3 mm
Connection	Hose D4(1)-D4(2)
Suction rate (max.)	2 (l/min)
Air consumption suction	4 (l/min)
Sound pressure level free	51 (dB(A))
Pressure range (operating pressure) [bar]	2.0 ... 6.0 bar
Max. vacuum	870 (mbar)
Control valve	Normally open
Protection type IP	IP 40 (with plug)

SCPMb 05 S01 NC AAD

Part no.: 10.02.02.05734

Mini-pump, compact ejector with minimum size

Nozzle size	0,5 mm
Connection	Hose D4(1)-D4(2)
Suction rate (max.)	7.5 (l/min)
Air consumption suction	9 (l/min)
Sound pressure level free	66 (dB(A))
Pressure range (operating pressure) [bar]	3.5 ... 6.0 bar
Max. vacuum	870 (mbar)
Control valve	Normally closed
Protection type IP	IP 40 (with plug)

SCPMb 05 S01 NO AAC

Part no.: 10.02.02.05733

Mini-pump, compact ejector with minimum size

Nozzle size	0,5 mm
Connection	Hose D4(1)-D4(2)
Suction rate (max.)	7.5 (l/min)
Air consumption suction	9 (l/min)
Sound pressure level free	66 (dB(A))
Pressure range (operating pressure) [bar]	3.5 ... 6.0 bar
Max. vacuum	870 (mbar)
Control valve	Normally open
Protection type IP	IP 40 (with plug)

SCPMb 07 S01 NC AAF

Part no.: 10.02.02.05735

Mini-pump, compact ejector with minimum size

Nozzle size	0,7 mm
Connection	Hose D4(1)-D4(2)
Suction rate (max.)	15 (l/min)
Air consumption suction	22 (l/min)
Sound pressure level free	70 (dB(A))
Pressure range (operating pressure) [bar]	3.5 ... 6.0 bar
Max. vacuum	870 (mbar)
Control valve	Normally closed
Protection type IP	IP 40 (with plug)

SCPMb 07 S01 NO AAE

Part no.: 10.02.02.05591

Mini-pump, compact ejector with minimum size

Nozzle size	0,7 mm
Connection	Hose D4(1)-D4(2)
Suction rate (max.)	15 (l/min)
Air consumption suction	22 (l/min)
Sound pressure level free	70 (dB(A))
Pressure range (operating pressure) [bar]	3.5 ... 6.0 bar
Max. vacuum	870 (mbar)
Control valve	Normally open
Protection type IP	IP 40 (with plug)

SCPMb 10 S04 NC AAL

Part no.: 10.02.02.05737

Mini-pump, compact ejector with minimum size

Nozzle size	1,0 mm
Connection	Hose D6(1)-D6(2)
Suction rate (max.)	28 (l/min)
Air consumption suction	45 (l/min)
Sound pressure level free	71 (dB(A))
Pressure range (operating pressure) [bar]	3.5 ... 6.0 bar
Max. vacuum	870 (mbar)
Control valve	Normally closed
Protection type IP	IP 40 (with plug)

SCPMb 10 S04 NO AAH

Part no.: 10.02.02.05736

Mini-pump, compact ejector with minimum size

Nozzle size	1,0 mm
Connection	Hose D6(1)-D6(2)
Suction rate (max.)	28 (l/min)
Air consumption suction	45 (l/min)
Sound pressure level free	71 (dB(A))
Pressure range (operating pressure) [bar]	3.5 ... 6.0 bar
Max. vacuum	870 (mbar)
Control valve	Normally open
Protection type IP	IP 40 (with plug)

SCPMc 12 S04 NC M8-6 PNP EAP

Part no.: 10.02.02.06532

Mini Compact Ejector with air-saving function and display with

Connection	Hose D6(1)-D6(2)
Suction rate (max.)	30 (l/min)
Air consumption suction	51 (l/min)
Sound pressure level free	76 (dB(A))
Pressure range (operating pressure) [bar]	3.5 ... 6.0 bar
Max. vacuum	920 (mbar)
Electrical connection	Male connect M8, 6 pole
Construction vacuum switch	PNP switching
Control valve	Normally closed
Protection type IP	IP 40

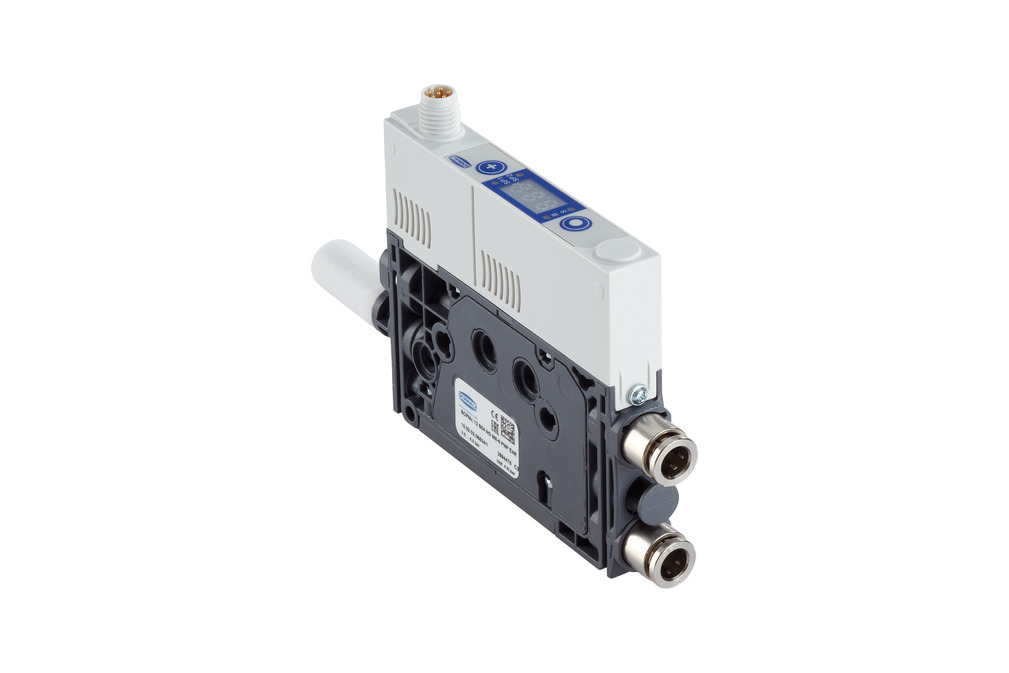

SCPMc 12 S04 NO M8-6 PNP EAR

Part no.: 10.02.02.06534

Mini Compact Ejector with air-saving function and display with

Connection	Hose D6(1)-D6(2)
Suction rate (max.)	30 (l/min)
Air consumption suction	51 (l/min)
Sound pressure level free	76 (dB(A))
Pressure range (operating pressure) [bar]	3.5 ... 6.0 bar
Max. vacuum	900 (mbar)
Electrical connection	Male connect M8, 6 pole
Construction vacuum switch	PNP switching
Control valve	Normally open
Protection type IP	IP 40
