- EFFICIENT
SEP HF 2 13 22
Part no.: 10.02.01.01347
Multistagenozzle as a cartridge
| Shape | High flow |
| Number of stages | 2 |
| Nozzle size | 1,3 mm |
| Hole diameter | 22 (mm) |
| Degree of evacuation | 61 (%) |
| Pressure range (operating pressure) [bar] | 2.0 ... 6.0 bar |
| Optimal operating pressure | 4 (bar) |
| Suction rate (max.) | 175.3 (l/min) |
| Air consumption suction | 74 (l/min) |

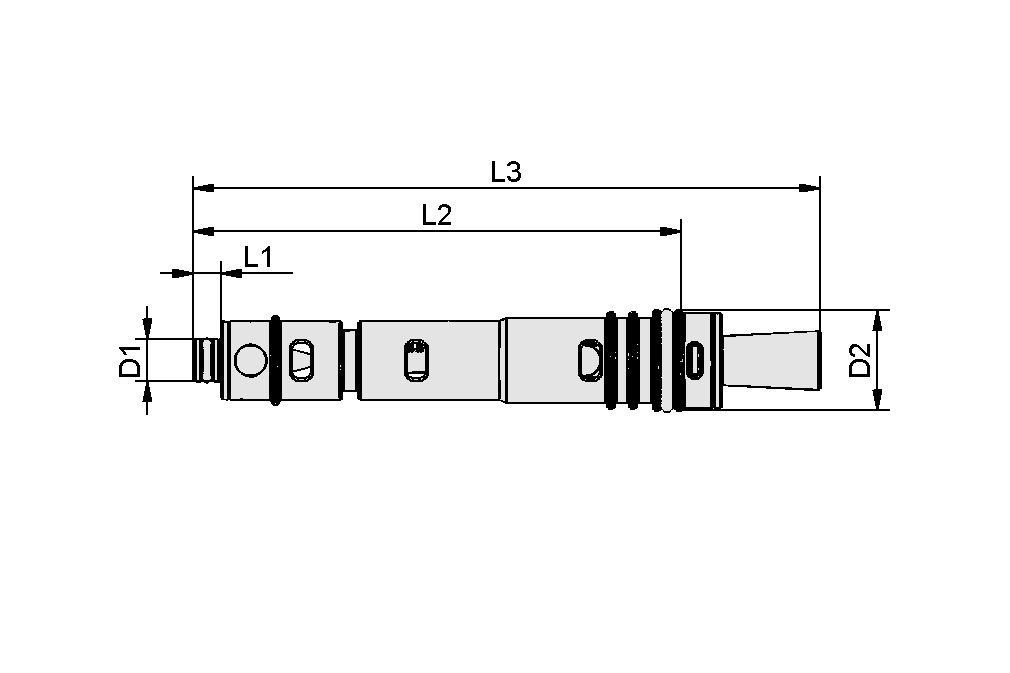

Design Data
Design Data
| Attribute | Value |
|---|---|
| D1 | 10,8 mm |
| D2 | 21,8 mm |
| L1 | 8 mm |
| L2 | 67,5 mm |
| L3 | 92 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Weight | 15,8 g |
| Operating temperature | 0 ... 60 °C |
| Recommended hose internal diameter compressed air | 6 mm |
| Recommended hose internal diameter vacuum | 12 mm |
| Pressure range (operating pressure) [bar] | 2.0 ... 6.0 bar |
| Pressure range (operating pressure) [bar] | 29.0 ... 87.0 |
| Optimal operating pressure | 4 bar |
| Optimal pressure | 58 psi |
| Sound pressure level free | 84 dB(A) |
| Sound pressure level suction | 75 dB(A) |
| Suction rate (max.) | 10,79 m³/h |
| Suction rate (max.) | 175,3 l/min |
| Suction rate (max.) | 6,19 cfm |
| Air consumption suction | 4,55 m³/h |
| Air consumption suction | 74 l/min |
| Air consumption suction | 2,61 cfm |
| Degree of evacuation | 61 % |
| Number of stages | 2 |
| Nozzle size | 1,3 mm |
| Hole diameter | 22 mm |
| Shape | High flow |
| Product family | SEP |
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Spare parts
ERS SEP-22 6xRUE-KLAP10.02.01.01450Spare part set
| Utilization design | Ejector module |
| Size | 22 |
| contains | 6x flap |
Accessories
SHC 2 2210.02.01.01512Schmalz Holder Cap
| Number of stages | 2 |
| Hole diameter | 22 (mm) |
| Outside diameter D | 20 (mm) |
| Length L | 33 (mm) |
| Thread G1 | M27x1.5-M |
SD 29x70 SHC 2210.02.01.01517Silencer for vacuum generators
| Outside diameter D | 29 (mm) |
| Length L | 70 (mm) |
| Utilization design | Schmalz holder cap |
| Size | 22 |
SFE 22 AL10.02.01.01421Schmalz Fixation Element
| Hole diameter | 22 (mm) |
| Width B | 35 (mm) |
| Height H | 44 (mm) |
| Length L | 87.5 (mm) |
| Thread G1 | G1/4"-F |
| Thread G2 | G3/8"-F |
| Compressed air connection | G1/4"-F |
| Suction cup connection | G3/8"-F |
| Vacuum connection | G1/4"-F |
SFE 22 POM10.02.01.01767Schmalz Fixation Element
| Hole diameter | 22 (mm) |
| Width B | 31.5 (mm) |
| Height H | 45 (mm) |
| Length L | 80 (mm) |
| Thread G1 | G3/8"-F |
| Thread G2 | G1/4"-F |
| Compressed air connection | G3/8"-F |
| Suction cup connection | G1/4"-F |
| Vacuum connection | M27x1.5-F |
BEF-WIN 50x40x41 5 SFE-2210.08.03.00315Mounting bracket
| Width B | 50 (mm) |
| Height H | 40 (mm) |
| Length L | 41 (mm) |
| Utilization design | Schmalz Fixation Element |
| Size | 22 |
SET SFE 2210.02.01.01577Mounting set
| Width B | 20 (mm) |
| Height H | 20 (mm) |
| Length L | 27 (mm) |
| Utilization design | Schmalz Fixation Element |
| Size | 22 |
| Thread G1 | G1/4"-M |
| Thread G2 | M8-M |
SEV G1/8-IG G1/4-AG10.02.01.01471Quick release valve
| Outside diameter D | 19 (mm) |
| Length L | 37 (mm) |
| Thread G1 | G1/8"-F |
| Thread G2 | G1/4"-M |
