Column-Mounted Jib Cranes
Jib cranes from Schmalz are very versatile in their use and can be combined with many lifting devices such as chain hoists, rope hoists, smart hoists or vacuum lifting devices. In combination with one of our lifting aids, Schmalz pillar-mounted slewing cranes form complete systems ready for connection. In this way, our cranes support a large number of manual handling tasks. Their high degree of flexibility makes them the ideal helper for a wide variety of applications.
When installing the crane on a column, the pivoting angle is 270°. The crane can be installed freestanding in the room. For a weight of up to 1,000 kg, the Column Slewing Cranes use aluminium crane rails. This guarantees extreme responsiveness.
Optimum ergonomics thanks to excellent low-friction properties
High working speed and positioning accuracy
Large working range due to generous swivel angles
Adjustable travel path due to variable end stops
Designed according to DIN EN 13001: Lifting class HC3, stress group S1
Tổng quan về bộ dụng cụ lắp ráp
Tổng quan về bộ dụng cụ lắp ráp
.jpg)
(1) Chain hoist
(2) Energy supply
Trailing cable or conductor line
(3) Motor protection switch
(4) Anchor-Ready base plate
Dimensions: 400 x 400 mm to 950 x 950 mm
(5) Coated steel crane column
Overall height: 5,250 mm
Lower edge of jib: max. 4,000 mm
Alternatively with console for wall mounting
(6) Aluminum pivot bearing
Column mounted jib crane swivel angle: 270°
Wall mounted jib crane swivel angle: 180°
Can be limited
(7) Aluminum jib
Length: 2,000 mm to 8,000 mm
Các thành phần mô-đun
Các thành phần mô-đun
Aluminum jib minimizes the force required
- Optimal low friction operation thanks to extruded section with hollow chamber geometry
- Material: Aluminum natural anodized (EN AW 60 63 T66)
- Easy swiveling thanks to low mass (weight from 3 kg/m)
- Easy jib alignment for exact positioning of the load
- In each case, two fixed and variable end stops for adjusting the travel path are included
.jpg)
Easy to move pivot bearing
- Effortless swiveling even close to the pivot bearing
- Easy mounting even when the ceiling height is low thanks to two separate bearing bolts
- Maintenance free spherical bearing
Low friction transport trolley
- Sturdy pressure cast aluminum design
- Secure connection of all types of hoists
- Optimal running performance thanks to large rollers made from high performance plastic
.jpg)
Trailing cable
- Standard energy supply via cable trolley in the aluminum section
- Suitable for power cables (flat cables) and hoses (vacuum and compressed air)
.jpg)
Conductor line
- Wireless power supply via insulated plastic rails
- There are no cable storage devices or cable loops to cause interference
- Travel path between pivot bearing and transport trolley up to 400 mm larger
.jpg)
Crane column
- High quality welded steel construction, RAL 7035 light gray coating (special coating upon request)
- Fitted with anchors
- Space-saving dimensions of the base plate (400 x 400 mm to 950 x 950 mm)
Thông số kỹ thuật
Thông số kỹ thuật
.jpg)
- Basis for calculation: DIN EN 13001
- Hoisting class: HC3
- Stress group: S1
Jib cranes especially for vacuum lifting device VacuMaster
Column mounted jib crane SK with aluminium crane rails for vacuum lifting device VacuMaster
| Type | Max. lift capacity [kg] | L [mm] | H* [mm] | H1 [mm] | H2** [mm] | L1 [mm] | L2 [mm] | L5 [mm] | L6 [mm] |
|---|---|---|---|---|---|---|---|---|---|
| SK-KZG-80 | 80 | 3,000 - 6.000 | 3,130 | 500 | 2,600 | 182 | 600 - 800 | 140 - 180 | 400 |
| SK-KZG-125 | 125 | 3,000 - 6,000 | 3,130 - 3,380 | 500 - 750 | 2,600 | 210 | 600 - 800 | 180 | 400 - 550 |
| SK-KZG-200 | 200 | 3,000 - 8,000 | 3,380 | 750 | 2,600 | 210 - 260 | 650 - 850 | 180 - 250 | 550 - 700 |
| SK-KZG-350 | 350 | 3,000 - 6,000 | 3,385 | 750 | 2,600 | 260 - 290 | 650 - 850 | 250 - 300 | 700 - 860 |
| SK-KZG-650 | 650 | 3,000 - 6,000 | 3,635 | 1,000 | 2,600 | 280 - 350 | 700 - 900 | 300 - 350 | 860 |
| SK-KZG-1000 | 1,000 | 3,000 - 6,000 | 3,950 | 1,300 | 2,600 | 400 - 420 | 750 - 950 | 400 - 420 | 950 |
*H max. = 5,000 mm **H2 = 4,000 mm
Jib cranes especially for vacuum tube lifter Jumbo
Column mounted jib crane SK with aluminium crane rails for vacuum tube lifter Jumbo
| Type | Max. lift capacity [kg] | L [mm] | H* [mm] | H1 [mm] | H2** [mm] | L1 [mm] | L2 [mm] | L5 [mm] | L6 [mm] |
|---|---|---|---|---|---|---|---|---|---|
| SK-JU-45 |
45 |
2,000 - 6,000 | 3,525 | 500 - 505 | 3,000 | 182 | 450 - 750 | 140 | 400 |
| SK-JU-65 | 65 | 2,000 - 6,000 | 3,525 - 3,530 | 500 | 3,000 | 182 - 210 | 450 - 750 | 140 - 180 | 400 |
| SK-JU-85 | 85 | 3,000 - 6,000 | 3,525 - 3,530 | 500 | 3,000 | 182 - 210 | 550 - 750 | 140 - 180 | 400 |
| SK-JU-110 | 110 | 3,000 - 6,000 | 3,530 | 500 | 3,000 | 182 - 210 | 550 - 750 | 140 - 180 | 400 - 550 |
| SK-JU-140 | 140 | 3,000 - 6,000 | 3,730 - 3,980 | 500 - 750 | 3,200 | 210 | 550 - 750 | 180 | 400 - 550 |
| SK-JU-200 | 200 | 3,000 - 8,000 | 3,980 | 750 | 3,200 | 210 | 550 - 750 | 180 | 550 - 700 |
| SK-JU-300 | 300 | 3,000 - 6,000 | 3,980 - 3,985 | 750 | 3,200 | 210 - 260 | 550 - 750 | 250 | 700 - 860 |
*H max. for type SK…45-140 = 4,500 mm (4,750 mm for type SK…200/300) **H2 max. for type SK = 4,000 mm
Câu chuyện thành công
Câu chuyện thành công
Schmalz Vacuum Lifter Facilitates Awning Handling
Tìm hiểu thêm ngay bây giờ

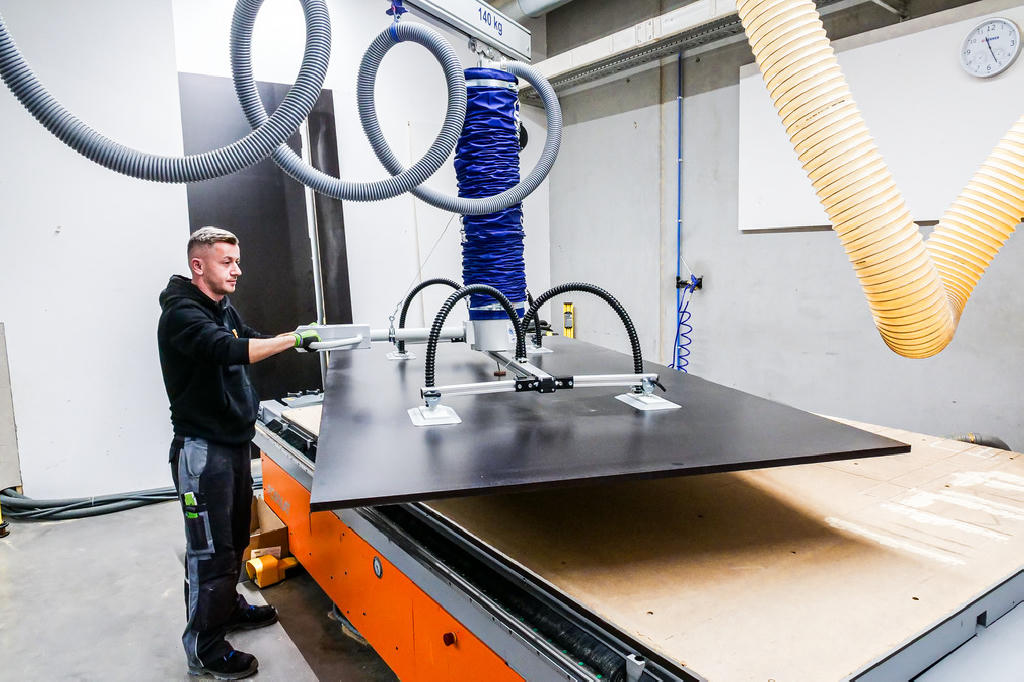

Vacuum Lifter Simplifies the Handling of Formwork Panels
Tìm hiểu thêm ngay bây giờ
Schmalz Vacuum Lifter Facilitates Logistics at Erkodent
Tìm hiểu thêm ngay bây giờ
Schmalz Vacuum Lifter Optimizes Automotive Glass Production at Fuyao
Video
Khám phá các ví dụ ứng dụng của sản phẩm trong các ngành công nghiệp khác nhau – dễ sử dụng, giàu thông tin và mang tính thực tiễn cao.
Không tìm thấy video phù hợp? Vậy hãy thử xem qua thư viện phương tiện của chúng tôi nhé.
Xem video ngay
How To...? Assembling the crane column of the column-mounted jib crane
Xem video ngay
How To...? Assembling the jib of the column-mounted jib crane
Xem video ngay
How To...? Assembly and adjustment of the slewing angle limiter on a jib crane
Xem video ngay
Vacuum Tube Lifters JumboErgo for handling 80 kg formwork panels for loading CNC machining centers
Xem video ngay
Vacuum Tube Lifter Jumbo Low-Stack
Xem video ngay
How To...? - Cranes - mounting the variable end stop
Xem video ngay
Vacuum tube lifter JumboErgo in prefabricated house assembly
Xem video ngay
JumboErgo on column-mounted jib crane for handling awnings
Phụ kiện
Anchor set
- High quality injection mortar anchor
- Required cement thickness: min. 200 mm; required concrete quality: min. B25 or C25/235
- No additional foundation necessary
- For loads weighing up to 1,000 kg
Mobile base plate
- No need to attach to the floor
- Can be easily transported by means of a forklift or pallet truck
- Dimensions from 1,200 x 1,200 mm to 1,470 x 1,470 mm
- For loads weighing up to 200 kg (depending on the jib length)
Slewing angle limiter
- Limit stop for individual adjustment of the swiveling range
- The limit for each swivel side is 0° to 100°
Blower console
- For attaching vacuum generators directly to the crane column
- Easy mounting by means of a clasp
Integrated motor protection switch
- To protect electrical devices against overvoltage
- Can be locked, optional and therefore suitable as main switch
Drag chain V-Chain
- Packs the vacuum supply hose package
- Saves additional space with low room heights
Slewing angle limiter with process monitoring
- Integration of a position-dependent machine and process release
- Limitation per swivel side from 0° to 100
