VCMC-G-QUICK 170x135x100 10-100
Part no.: 10.01.12.04759
Mechanical clamp for narrow and frame parts, for smooth tables
| Shape | QUICK |
| Dimension (LxW) | 170x135 |
| Height H | 100 (mm) |
| Stroke Z | 10 (mm) |
| Clamping range [mm] | 10.0 ... 100.0 mm |

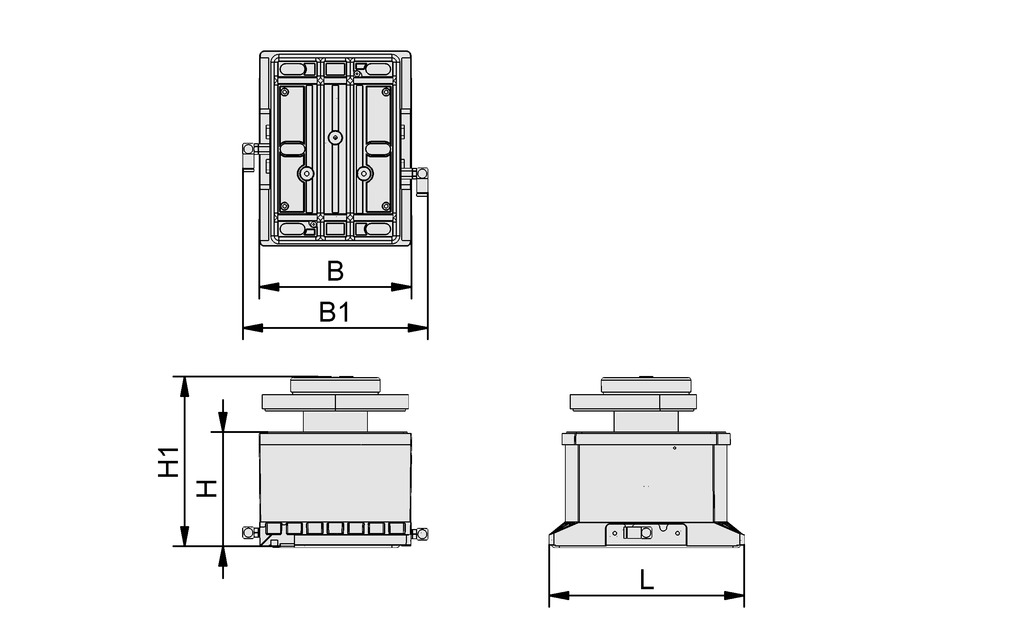

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 133 mm |
| B1 | 162.5 mm |
| H | 100 mm |
| H1 | 233.5 mm |
| L | 171 mm |
Documentation
Documentation
Spare parts
VCDR 166x113x6.6 VCMC-G10.01.12.04758Sealing frame (bottom)
| Length L | 166 (mm) |
| Width B | 113 (mm) |
| Height H | 6.6 (mm) |
| Utilization design | Mechanical clamp VCMC-G |
SPAN-TELL 110 EXZ VCMC10.01.12.04239Clamping disc for mechanical clamp
VCMC
| Outside diameter D | 110 (mm) |
| Installation position | EXZ |
| Utilization design | Mechanical clamp VCMC |
