ECBPMi 24V-DC MATCH
Part no.: 10.03.01.00661
CobotPump (Mini) for electrical vacuum generation for collaborative robots
| Suction rate (max.) | 1.6 (l/min) |
| Rated power | 7.2 (W) |
| Voltage | 24V - DC |
| Rated current | 0.3 (A) |
| Operating temperature | 0 ... 40 °C |
| Version | Quick-change system MATCH |

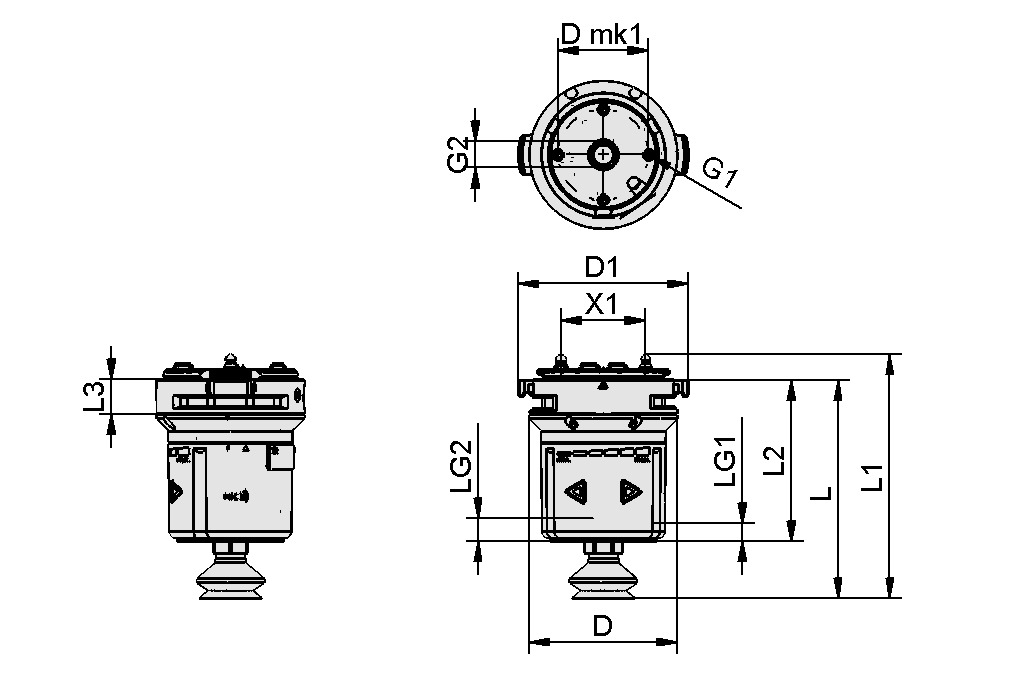

Design Data
Design Data
| Attribute | Value |
|---|---|
| D | 75 mm |
| D1 | 86.5 mm |
| D mk1 | 46 mm |
| G2 | G1/4"-F |
| L | 110.9 mm |
| L1 | 123.9 mm |
| L2 | 81.9 mm |
| L3 | 18.1 mm |
| LG1 | 6 mm |
| LG2 | 11 mm |
| X1 | 43 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction rate (max.) | 1.6 l/min |
| Voltage DC | 24 V - DC |
| Rated power | 7.2 W |
| Rated current | 0.3 A |
| Degree of evacuation | 60 % |
| Lift capacity (horizontal) | 10 N |
| Lift capacity (vertical) | 30 N |
| Operating temperature | 0 ... 40 °C |
