ROB-SET-SGM-SV-40 9409-1
Part no.: 10.01.17.00593

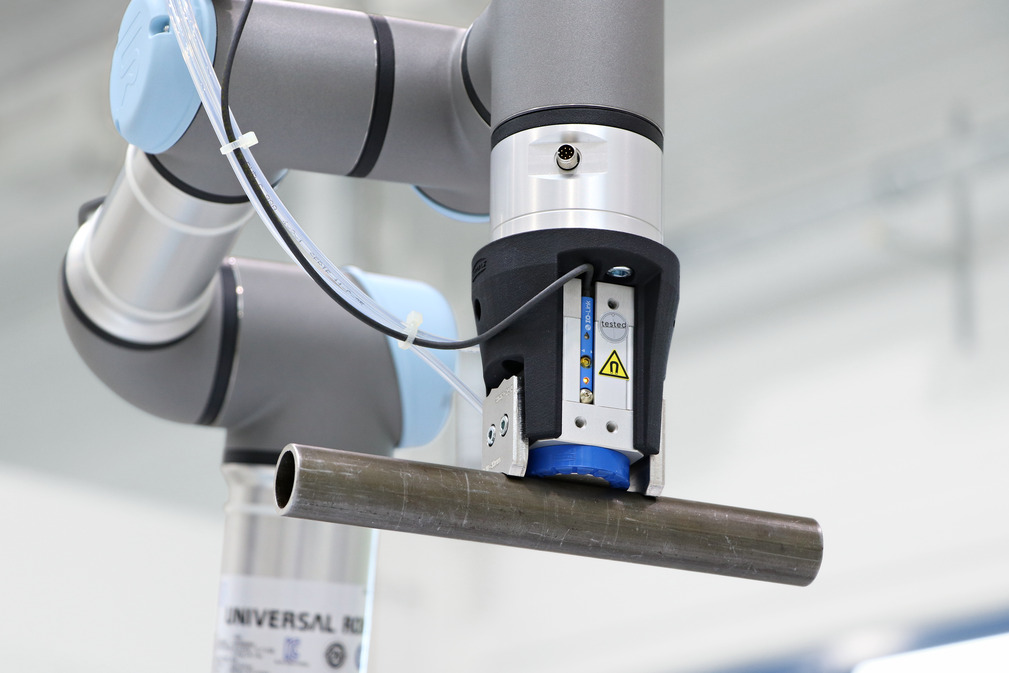

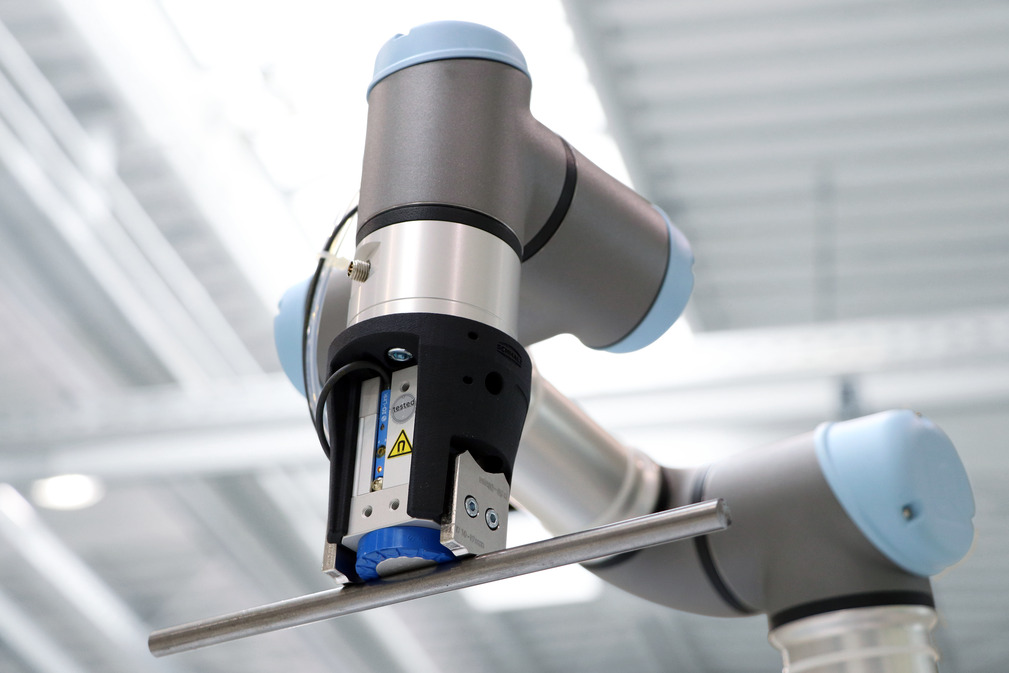

Complete set for connecting integrating a magnetic gripper to lightweight robots
| Utilization design | Magnetic gripper sensor preparation |
| Standard | DIN EN ISO 9409-1 |
Ready-to-install set with push-in fittings, hose and cable attachments for fast and safe robot integration
Bistable function with permanent magnet ensures secure gripping even in the event of power failure
Minimal space requirement and low weight thanks to compact design and lightweight construction
Gripping surface with friction ring to absorb high lateral forces
Commissioning software for simple and fast parameterization
Design
Design

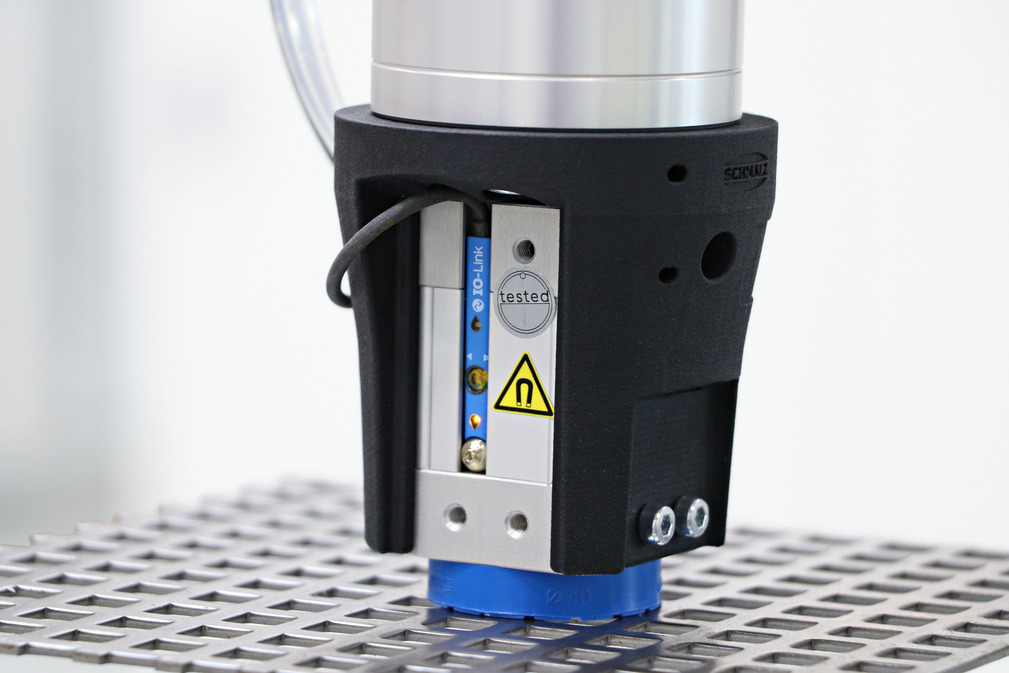

- HRC-suitable housing with magnetic gripper SGM-SV and retrofittable proximity switch (switching state of magnetic gripper: gripping / releasing) (1)
- Compressed air connections for gripping / releasing (2)
- Gripping surface with friction ring (3)
- Robot interface in flange design (4), adapter flanges for other robot types (7)
- Additional elements for gripping round workpieces (5)
Technical Data
Technical Data
- Gripping surface magnetic gripper: Ø 40 mm
- Max. holding force: 100 N
- Lightweight robot applications (cobots)
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
1 - 1 from 1 results
