VH-VOL 10 F
Onderdeelnr.: 10.01.55.00031
Vacuümopslagtank met accessoires
| Reservoir volume | 10 (l) |
| with | Filter |
| Width B | 281 (mm) |
| Height H | 307 (mm) |

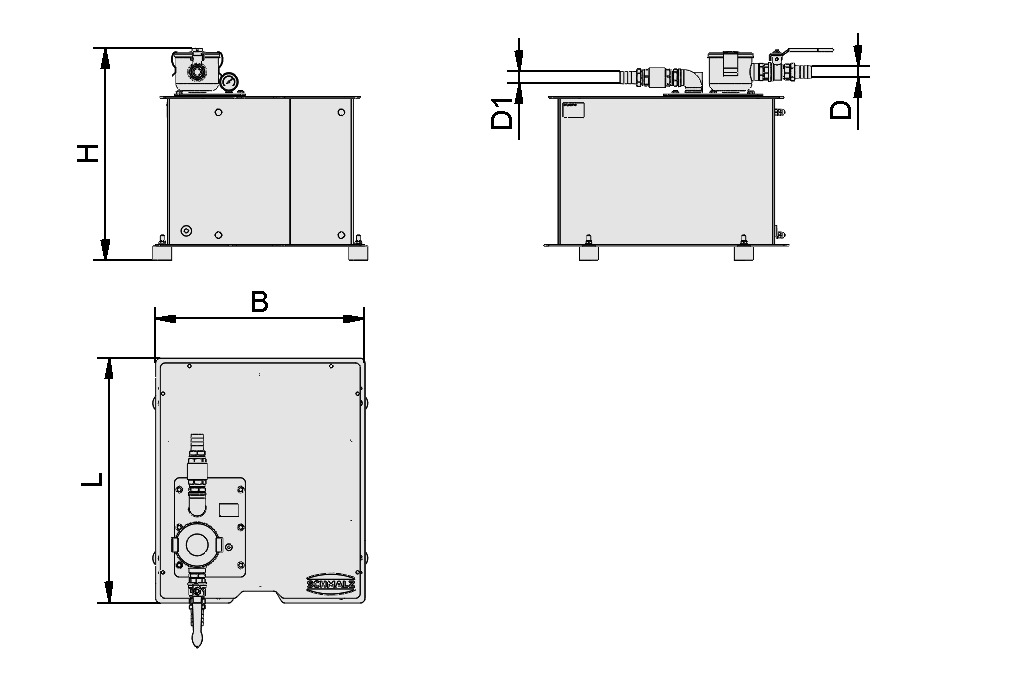

Ontwerpgegevens
Ontwerpgegevens
| Attribuut | Waarde |
|---|---|
| B | 281 mm |
| D1 | 13 mm |
| D | 13 mm |
| H | 307 mm |
| with | Filter |
Technische gegevens
Technische gegevens
| Attribuut | Waarde |
|---|---|
| Reservoir volume | 10 l |
| Pressure range (operating pressure) [bar] | -1,00 ... 0,50 bar |
Documentatie
Documentatie
Onderdelen
VAM 63 V H BAR/PSI10.07.02.00003Vacuümmanometer voor
analoge meting
en controle van het vacuüm
| Outside diameter D | 63 (mm) |
| Measuring range [bar] | -1,00 ... 0,00 bar |
| Shape manometers | Aansluiting achter |
| Product family | VAM |
| BAR/PSI scale |
RSV 18 G1/2-IG MS10.05.05.00003Terugslagklep voor systeem-
beveiliging bij energiewegval
| Nominal size | 18 (mm) |
| Thread G1 | G1/2"-F |
| Nominal flow rate | 26 (m³/h) |
| Operating temperature | -20 ... 100 °C |
| Material | Brass |
STF G3/4-IG N10.07.01.00007Stoffilter
| Connection | G3/4"-IG |
| Shape | Steel housing |
| Nominal flow rate | 42 (m³/h) |
| Filter pore size | 3 (µm) |
FILT-EINS 3 65x70 PAP STF-3/4-IG10.07.01.00017Filterinzetstuk (rond)
| Filter pore size | 3 (µm) |
| Outside diameter D | 65 (mm) |
| Length L | 69.5 (mm) |
| Filter material | Papier |
| Utilization design | Dust filter STF |
| Size | 3/4-IG |
Accessoires
VSL 19-13 PVC-DS KL-TR10.07.09.00016Slang voor vacuüm- en
persluchtsystemen
| Outside diameter D | 19.2 (mm) |
| Internal diameter d | 13 (mm) |
| Length max. | 50 (m) |
| Material hose | PVC with wire spiral |
| Bending radius min. | 85 (mm) |
| Pressure range (operating pressure) [bar] | -0,90 ... 5,00 bar |
| Operating temperature | -15 ... 65 °C |
| Color | Doorzichtig-transparant |
