Vacuum Tube Lifter JumboFlex Mobile
The transportable tube lifter solution for packages up to 50 kg
A tube lifter that can be used for handling goods in changing locations and that offers very compact transport dimensions: That is the JumboFlex Mobile.
Compact solution for changing operational locations
Ergonomic handling with the tube lifter JumboFlex and responsive articulated-arm jib
Compact transport dimensions due to height-adjustable column and compact parking position of the articulated-arm jib
Operation of the JumboFlex Mobile with mains voltage 400V 50Hz 16 A at standard industrial sockets. Location-independent use of the JumboFlex Mobile Battery thanks to optional battery operation
Low noise level due to sophisticated main body with very good noise insulation
New! Wireless. Maximum flexibility.

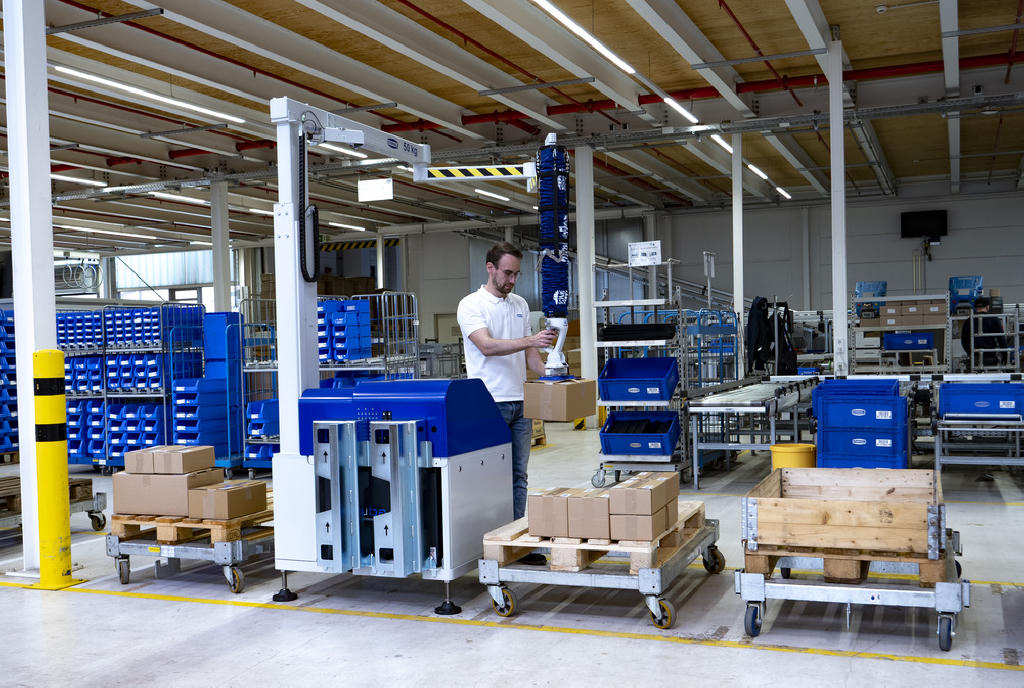

The new JumboFlex Mobile Battery works independently of the mains and is compact and easily transportable. Thanks to its innovative battery changing system, it is ready for immediate use at any time - flexible for a wide range of applications.
Design
- (1) Vacuum tube lifter JumboFlex with 35 kg or 50 kg load capacity and approx. 1,500 mm lift
- (2) Electrical height-adjustable column for compact transport size of approx. 2,250 mm total height
- (3) Responsive articulated-arm jib with 360° radius of action with approx. 2,400 mm reach and approx. 1,600 mm moving length
- (4) Basic module with vacuum generation, status LED display and optional battery with battery housing
