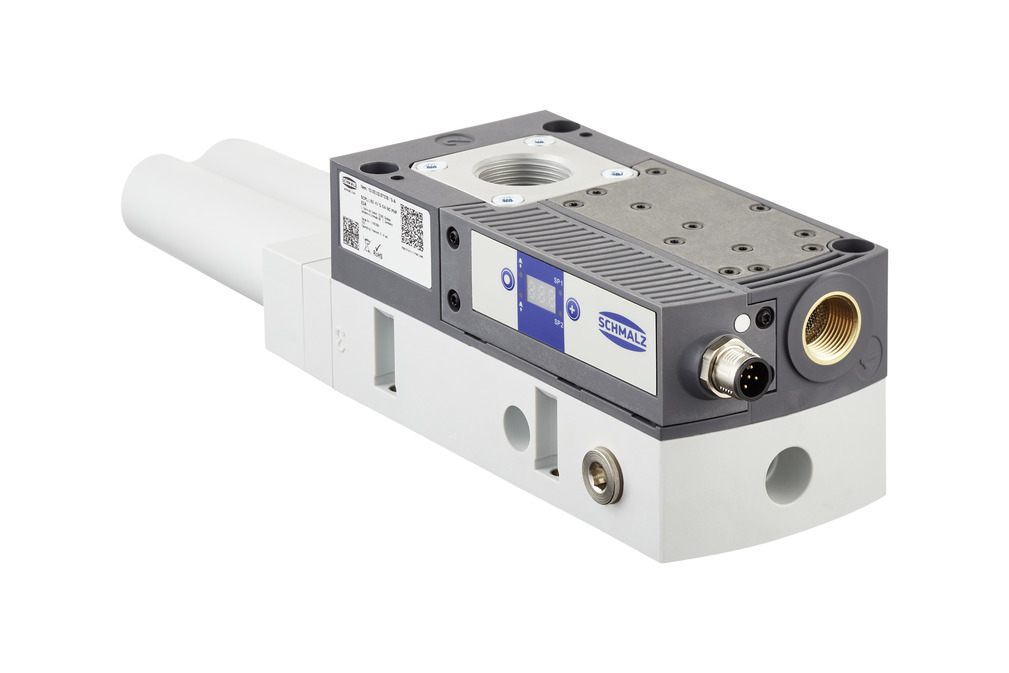

SCPL multi-stage compact ejector: flexible all-rounder

Porous or suction tight, large or small: The SCPL multi-stage compact ejector adapts flexibly to a wide range of process parameters. Thanks to its high suction capacity, it moves porous workpieces such as cardboard and packaging materials with ease. An optional air-saving regulation allows it to efficiently handle even suction tight materials such as glass or sheet metal. Schmalz relies on multi-stage nozzles and thus achieves efficient vacuum generation with low compressed air consumption. The result: SCPL impresses in processes with high volume flow requirements while optimizing energy consumption.

Another possible application is large vacuum systems with partial occupancy. Here, the compact ejectors compensate for leakage flows that occur when handling workpieces with different air permeability and keep the vacuum level constant. In combination with surface gripping systems and suction traverses, these all-rounders also evacuate large volumes in unison.

Schmalz has integrated the valve technology and vacuum monitoring into the device - operators can therefore dispense with external solutions for controlling the vacuum system. The compact ejector can be controlled centrally via an integrated M12 connector - for quick and easy start of operations. The compact ejector is available either as the basic model SCPLb or in the monitored variant SCPLc. The latter has an electrical connection for controlling the integrated valves and the vacuum switch as well as an LED display. All devices are achieved with a degree of protection of IP54.
